IHC Assay Verification for CLIA Labs: A Complete Guide to FDA-Approved Tests and Best Practices

Abstract

This comprehensive guide details the critical process of verifying FDA-approved IHC assays within a CLIA laboratory environment. Targeting researchers, scientists, and drug development professionals, the article explores the regulatory foundations of CLIA and FDA requirements, provides step-by-step methodological protocols for assay implementation, addresses common troubleshooting scenarios, and establishes frameworks for performance validation and comparative analysis. The content aims to ensure clinical accuracy, regulatory compliance, and robust diagnostic results in precision medicine applications.

Navigating the CLIA Landscape: Understanding FDA-Approved IHC Assays and Regulatory Essentials

Application Notes

The Clinical Laboratory Improvement Amendments (CLIA) of 1988 establish quality standards for all laboratory testing on human specimens in the United States. In the context of developing and using immunohistochemistry (IHC) assays for research within a CLIA-certified laboratory, understanding the intersection of CLIA regulations and LDT oversight is critical. While IHC assays for patient care are regulated as LDTs under CLIA, their use in research, particularly for drug development using FDA-approved companion diagnostics, requires a clear operational framework.

Table 1: Key Regulatory Pathways for IHC Assays in a CLIA Lab Research Context

Assay Type	Primary Oversight	Pre-market Review	Allowed Use in CLIA Lab	Suitability for Research Thesis
FDA-Cleared/Approved IHC CDx	FDA & CLIA	Required (FDA PMA or 510(k))	Yes, for clinical reporting	High. Provides validated benchmark for LDT comparison.
Laboratory-Developed Test (LDT)	CLIA (CMS) & FDA (increasing oversight)	None under CLIA; FDA may require submission under new rules	Yes, for clinical reporting if validated per CLIA	Core focus. Must be verified per CLIA before use in research affecting patient care.
Research-Use Only (RUO) IHC Assay	None	None	No, for clinical reporting. Can be used for basic research.	Limited. Must be re-validated as an LDT if results inform clinical decisions in the study.
Investigational Use Only (IUO) IHC Assay	FDA (as a device)	Pending	No, for clinical reporting. Can be used within an IDE study.	Medium. For use within a specific drug trial under an IDE.

The evolving FDA oversight of LDTs, as outlined in the FDA Final Rule on LDTs (April 2024), introduces a phaseout of its general enforcement discretion. This means LDTs, including critical IHC assays used in oncology research, will increasingly require compliance with FDA regulatory requirements (e.g., Quality System Regulation, pre-market review for high-risk assays) over a four-year period. For a thesis utilizing IHC, this means protocols for LDT verification must now anticipate future FDA standards, not just CLIA.

Table 2: Core CLIA Requirements for IHC LDT Verification (Adapted for Research)

CLIA Quality Requirement	Typical IHC Assay Parameters to Verify	Example Protocol Goal for Thesis
Accuracy	Concordance with a reference method (e.g., FDA-approved test)	Establish % positive, negative, and overall agreement with an FDA-cleared CDx.
Precision	Inter-run, intra-run, and inter-operator reproducibility	Run known positive/negative samples across 5 days, 2 operators, 3 replicates.
Reportable Range	Staining intensity scores (0, 1+, 2+, 3+) linked to specific interpretations	Define the analytical measurement range for antigen detection (e.g., dilution series of control cell lines).
Reference Range	"Positive" vs. "Negative" cut-off definition	Establish cut-off using receiver operating characteristic (ROC) curve analysis against clinical outcome or reference standard.
Specimen Stability	Effects of pre-analytical variables (cold ischemia, fixative time)	Staining intensity comparison across tissue samples with controlled fixation delays.

Experimental Protocols

Protocol 1: Verification of Accuracy for an IHC LDT Against an FDA-Approved Assay

Objective: To determine the concordance between a laboratory-developed IHC assay (LDT) and an FDA-approved companion diagnostic (CDx) for the same biomarker.

Materials (Research Reagent Solutions Toolkit):

• Formalin-Fixed, Paraffin-Embedded (FFPE) Tissue Microarray (TMA): Contains 30-50 cases with expected range of biomarker expression (positive, negative, heterogeneous). Core research material.
• FDA-Approved CDx Kit: Includes primary antibody, detection system, and verified protocol. Reference standard.
• LDT Reagents: Laboratory-sourced primary antibody (clone matching CDx if possible), detection system (e.g., polymer-based HRP), antigen retrieval solution. Test system.
• CLIA-Qualified IHC Platform: Automated stainer or manual setup with calibrated equipment. Essential for reproducible execution.
• Digital Pathology Scanner & Image Analysis Software: For objective quantification of staining intensity and percentage. Critical for reducing observer bias.
• Statistical Software: For calculating agreement metrics (e.g., Cohen's kappa, percent agreement).

Methodology:

• Sectioning: Cut serial sections (4-5 μm) from the TMA block and mount on charged slides.
• Staining: Process one slide set using the FDA-approved CDx protocol (Group A). Process the paired serial sections using the proposed LDT protocol (Group B). Include controls per laboratory SOP.
• Scoring: Two board-certified pathologists, blinded to the assay group and each other's scores, evaluate all slides. Use the scoring system defined by the CDx (e.g., H-score, Combined Positive Score).
• Analysis: For each case, compare the final call (e.g., Positive/Negative) between the LDT and CDx. Calculate positive percent agreement (PPA), negative percent agreement (NPA), and overall percent agreement (OPA). Compute Cohen's kappa statistic.

Protocol 2: Verification of Precision (Reproducibility) for an IHC LDT

Objective: To assess the inter-run and inter-operator precision of the IHC LDT.

Materials: As in Protocol 1, focusing on a subset of TMA cores (e.g., 5 cases: high positive, low positive, negative).

Methodology:

• Experimental Design: Two operators (Operator 1, 2) will stain the selected TMA slides in three separate runs (Day 1, 2, 3).
• Staining: Each operator independently performs the full IHC LDT protocol on the designated days.
• Scoring: All slides are scored by a single pathologist (to isolate technical from interpretive variance) or by both operators in a crossed design.
• Analysis: Calculate the coefficient of variation (CV) for continuous scores (e.g., H-score) or percent agreement for categorical scores across runs and operators. Use analysis of variance (ANOVA) to partition variance components.

Mandatory Visualizations

IHC Assay Pathways in CLIA Research Lab

IHC LDT Verification Protocol Workflow

The Scientist's Toolkit: Key Reagent Solutions for IHC LDT Verification

Item	Function in IHC LDT Verification
FFPE Tissue Microarray (TMA)	Provides a standardized platform containing multiple tissue cases with known/expected biomarker status for parallel testing of accuracy and precision.
Reference Standard (FDA CDx Kit)	Serves as the benchmark for accuracy verification. Its validated protocol and reagents define the target performance for the LDT.
Isotype Control Antibody	A negative control antibody of the same class (e.g., IgG1) as the primary antibody, used to assess non-specific background staining.
Cell Line Control Pellets	FFPE pellets from cell lines with known antigen expression levels (negative, low, high) provide a consistent material for run-to-run precision monitoring.
Antigen Retrieval Buffer (pH 6 & pH 9)	Critical for unmasking epitopes. Testing different pH levels is part of optimizing/verifying the LDT protocol for a specific antibody-antigen pair.
Polymer-based Detection System	Amplifies the primary antibody signal. Selection and validation of this system is crucial for achieving optimal sensitivity and specificity.
Chromogen (DAB)	The enzyme substrate that produces a visible, stable brown precipitate at the antigen site. Must be validated for consistency and lack of precipitate artifact.
Automated Stainer & Coverslipper	Ensures procedural uniformity and reproducibility, a core requirement for meeting CLIA precision standards.

In the context of CLIA laboratory research, the selection and verification of immunohistochemistry (IHC) assays hinge on a precise understanding of the U.S. Food and Drug Administration’s (FDA) regulatory categories. The terms "FDA-approved" and "FDA-cleared" are legally distinct pathways with significant implications for validation requirements and intended use.

• FDA-Approved (Premarket Approval - PMA): This is the most stringent regulatory path. Assays (typically Class III devices) undergo rigorous scientific and regulatory review to demonstrate safety and effectiveness for their intended use. Approval is based on extensive clinical data, often from pivotal trials. These assays are intended for use as companion diagnostics or for standalone diagnostic, prognostic, or predictive purposes with a high level of assurance.
• FDA-Cleared (510(k) Premarket Notification): This pathway is for assays (Class I or II devices) deemed substantially equivalent to a legally marketed predicate device. The manufacturer must demonstrate the new device is as safe and effective as the predicate. The data requirements are less extensive than for PMA. The intended use is generally more limited or aligned with existing standard-of-care markers.

Table 1: Quantitative Comparison of FDA Regulatory Pathways for IHC Assays

Regulatory Attribute	FDA-Approved (PMA)	FDA-Cleared (510(k))
Regulatory Risk Classification	Class III (High Risk)	Class I or II (Low to Moderate Risk)
Review Standard	Safety and Effectiveness	Substantial Equivalence to a Predicate
Typual Review Timeline	180+ days	90+ days
Clinical Data Requirement	Extensive; prospective clinical trials often required	Limited; often analytical performance vs. predicate
Primary Intended Use	Companion Diagnostic; Standalone Diagnostic/Prognostic	Complementary diagnostic; Aid in diagnosis
Lab Verification Burden	Lower (Performance claims are fully established)	Higher (Lab must establish performance for its specific use)

Application Notes for CLIA Labs

For a CLIA-certified laboratory implementing a new IHC assay, the regulatory status dictates the verification protocol.

• Implementing an FDA-Approved Assay: The laboratory's verification is primarily focused on confirming the manufacturer's stated performance specifications within its own environment (CLIA regulation §493.1253). This involves a limited verification study.
• Implementing an FDA-Cleared or Laboratory Developed Test (LDT): The laboratory must perform a more comprehensive validation study, as the assay is often used for purposes beyond its cleared indication or is developed in-house. This establishes the test's accuracy, precision, reportable range, and reference range for its specific clinical application.

Experimental Protocols

Protocol 1: Verification of an FDA-Approved IHC Assay (e.g., PD-L1 22C3 pharmDx for NSCLC) Objective: To confirm the approved assay's performance characteristics in the local laboratory setting. Materials: See "The Scientist's Toolkit" below. Methodology:

• Sample Selection: Obtain 20 formalin-fixed, paraffin-embedded (FFPE) tissue specimens. Include 10 positive and 10 negative samples as previously determined by a reference lab using the same assay.
• Assay Procedure: Strictly follow the FDA-approved package insert for staining on the Autostainer Link 48.
• Evaluation: Two qualified pathologists, blinded to reference results, score slides according to the approved scoring algorithm (e.g., Tumor Proportion Score).
• Data Analysis: Calculate percent agreement (positive, negative, overall) with reference results. Acceptance criterion: ≥95% overall agreement.
• Precision: Run intra-run (3 replicates of 3 samples) and inter-run (3 samples over 5 days) reproducibility studies. Acceptance criterion: ≥90% concordance.

Protocol 2: Analytical Validation of an FDA-Cleared/LDT IHC Assay (e.g., CD5 IHC for T-Cell Lymphoma) Objective: To establish performance characteristics for a specific diagnostic application. Methodology:

• Accuracy/Concordance: Test 50 clinical specimens. Compare IHC results to a gold standard method (e.g., flow cytometry). Calculate sensitivity, specificity, and Cohen's kappa.
• Precision: Conduct repeatability (same operator, same run) and reproducibility (different operators, different days, different reagent lots) studies using 5 samples spanning the expression range. Use Fleiss' kappa for inter-observer agreement.
• Analytical Sensitivity (Limit of Detection): Perform serial dilutions of a known positive cell line pellet. Determine the lowest concentration that yields a specific, reproducible stain.
• Robustness: Intentionally vary pre-analytical conditions (e.g., fixation time: 6-72 hours) to establish assay stability.

Visualizations

Title: FDA Approval vs Clearance Pathways for IHC Assays

Title: Generic IHC Staining Protocol Workflow

The Scientist's Toolkit: Key Research Reagent Solutions

Table 2: Essential Materials for IHC Assay Verification/Validation

Item	Function	Example in Protocol 1
FDA-Approved/Companion Diagnostic Assay Kit	Provides all optimized, standardized reagents with locked-down protocols.	PD-L1 IHC 22C3 pharmDx Kit (Agilent)
Validated Primary Antibodies (RUO/IHC)	For LDT validation; target-specific binding.	Rabbit monoclonal anti-CD5 (Clone SP19)
Polymer-Based Detection System	Amplifies signal and visualizes antibody binding with high sensitivity.	EnVision FLEX/HRP Polymer (Dako)
Chromogen Substrate	Produces a visible, localized precipitate upon enzyme reaction.	3,3'-Diaminobenzidine (DAB)
Automated IHC Stainer	Standardizes staining procedure, improving reproducibility.	Autostainer Link 48 (Agilent)
Cell Line/Multitissue Control Microarrays	Provide consistent positive/negative controls for run-to-run monitoring.	FFPE cell line pellets; TMA with known reactivity
Digital Pathology & Image Analysis Software	Enables quantitative, reproducible scoring, especially for biomarkers like PD-L1.	QuPath, HALO, Visiopharm

The Role of IVD Companion Diagnostics in Targeted Therapy and Clinical Trials

Application Notes

Integration of CDx in Targeted Therapy Development

In Vitro Diagnostic (IVD) Companion Diagnostics (CDx) are essential tools that identify patients most likely to benefit from a specific targeted therapeutic or those at risk of serious adverse reactions. Within the thesis framework of IHC assay verification for FDA-approved tests in a CLIA lab, CDx assays—particularly IHC-based tests like PD-L1 IHC 22C3 pharmDx for pembrolizumab—are critical for ensuring the right patient receives the right drug. Their role extends from early-phase clinical trials for patient stratification to post-market surveillance, ensuring therapy efficacy and safety.

CDx in Clinical Trial Design and Enrollment

CDx assays are integral to enrichment strategies in modern oncology clinical trials. They enable the selection of biomarker-positive patient cohorts, increasing the probability of trial success by demonstrating a pronounced treatment effect in a defined population. For a CLIA lab involved in research, verification of an FDA-approved IHC CDx (e.g., HER2 IHC testing for trastuzumab) against the lab's specific procedures is mandatory to ensure results are comparable to the clinical trial data that supported drug approval.

Regulatory and Verification Landscape

The co-development of drugs and CDx has been formalized by the FDA. A CLIA lab implementing an FDA-approved CDx test must perform a verification study per CLIA regulations, not full validation. This involves demonstrating that the lab can achieve performance characteristics (accuracy, precision, reportable range) comparable to the manufacturer's claims. This verification is a cornerstone of the broader thesis, ensuring that the lab's research and patient testing align with the standards that underpinned the regulatory approval of the corresponding targeted therapy.

---

Experimental Protocols

Protocol 1: Verification of an FDA-Approved IHC CDx Assay in a CLIA Lab

This protocol outlines the key experiments for verifying an FDA-approved IHC-based companion diagnostic (e.g., PD-L1 IHC 28-8 pharmDx) for use in a CLIA-certified laboratory research setting.

Objective: To verify the performance of an FDA-approved IHC CDx assay on-site against the manufacturer's established specifications.

Materials: See "Research Reagent Solutions" table.

Pre-Verification: Ensure laboratory personnel are trained per manufacturer's instructions. Establish proper procedures for pre-analytic (tissue fixation, processing), analytic (staining), and post-analytic (interpretation) phases.

Methodology:

• Sample Selection: Obtain a minimum of 20 formalin-fixed, paraffin-embedded (FFPE) tissue specimens. Include cases spanning the assay's reportable range (e.g., for PD-L1, include tumor proportion scores of 0%, 1-49%, and ≥50%).
• Accuracy/Concordance Study:
  • Stain all selected specimens using the FDA-approved assay according to the package insert.
  • Compare results to a reference standard. This can be (a) results from a reference laboratory using the same assay, or (b) orthogonal data from a different validated method (e.g., RNA sequencing for the same biomarker).
  • Calculate positive, negative, and overall percent agreement.
• Precision Studies:
  • Intra-run Precision: Stain 3 samples (low, medium, high expression levels) in triplicate in a single run. Assess agreement in scores.
  • Inter-run Precision: Stain the same 3 samples across three separate runs (e.g., different days, different operators). Assess agreement.
  • Inter-observer Precision: Have at least two qualified pathologists score a set of 10-20 cases independently. Calculate inter-rater reliability (e.g., Cohen's kappa statistic).
• Reportable Range: Demonstrate that the assay correctly identifies samples across all expected expression levels using the characterized sample set.
• Data Analysis: Compile all data. Performance is considered verified if all metrics meet or exceed the minimum performance criteria set by the lab director, typically aligning with the manufacturer's claims (e.g., ≥95% overall agreement for accuracy).

Protocol 2: Utilizing a Verified CDx for Patient Stratification in a Research Clinical Trial

This protocol describes the application of a verified IHC CDx assay within the context of a sponsor-investigator clinical trial for a targeted therapy.

Objective: To accurately stratify patient candidates for enrollment into a biomarker-driven clinical trial using a verified CDx.

Materials: As in Protocol 1.

Methodology:

• Protocol & IRB: Ensure the clinical trial protocol and informed consent specify the use of the CDx for eligibility. Obtain IRB approval.
• Sample Receipt & Tracking: Establish a chain-of-custody for trial specimen blocks/slides. De-identify and label with a unique trial ID.
• CDx Testing: Perform the verified IHC assay (from Protocol 1) on the candidate's tumor sample in the CLIA lab.
• Interpretation & Reporting: A qualified pathologist, blinded to clinical outcome, scores the assay according to the FDA-approved scoring manual. The result (positive/negative or specific score) is recorded in a dedicated trial report.
• Eligibility Determination: The trial principal investigator reviews the CDx report alongside other eligibility criteria to enroll or exclude the patient.
• Data Correlation: In the research analysis phase, patient response data (e.g., RECIST criteria, progression-free survival) is correlated with the CDx result to validate the biomarker-therapy hypothesis.

---

Data Tables

Table 1: Key FDA-Approved IHC-Based Companion Diagnostics in Oncology (Selected Examples)

Therapeutic Agent (Drug)	Target Biomarker	FDA-Approved CDx Assay (IHC)	Indication(s)
Trastuzumab	HER2	PATHWAY anti-HER-2/neu (4B5)	Breast, Gastric Cancer
Pembrolizumab	PD-L1	PD-L1 IHC 22C3 pharmDx	Various Cancers (e.g., NSCLC, HNSCC)
Nivolumab	PD-L1	PD-L1 IHC 28-8 pharmDx	Various Cancers (e.g., Melanoma, NSCLC)
Durvalumab	PD-L1	VENTANA PD-L1 (SP263) Assay	Urothelial Carcinoma, NSCLC
Cetuximab	EGFR (Expansion)	Not required for efficacy, but EGFR expression by IHC is tested	Colorectal Cancer (wild-type RAS)

Table 2: Example Verification Results for a Hypothetical PD-L1 IHC CDx Assay

Performance Characteristic	Study Design	Acceptance Criterion	Observed Result	Pass/Fail
Accuracy (vs. Reference Lab)	30 FFPE NSCLC cases	Overall Agreement ≥90%	96.7% (29/30)	Pass
Intra-run Precision	3 samples, 3 replicates/run	100% Concordance on Pos/Neg Call	100% Concordance	Pass
Inter-run Precision	3 samples, 3 runs	100% Concordance on Pos/Neg Call	100% Concordance	Pass
Inter-observer Precision	20 cases, 2 pathologists	Kappa Statistic ≥0.80	Kappa = 0.89	Pass

---

Diagrams

---

The Scientist's Toolkit: Research Reagent Solutions

Item	Function in IHC CDx Verification/Use
FDA-Approved CDx Kit	Contains all primary antibody, detection reagents, and controls necessary to perform the test as specified in the regulatory filing.
Validated FFPE Tissue Sections	Characterized positive, negative, and variable expression level tissue controls required for daily run validation and verification studies.
Antigen Retrieval Buffer	Solution (e.g., EDTA or citrate-based) used to unmask epitopes in FFPE tissue sections prior to antibody staining.
Automated IHC Stainer	Instrument platform programmed to run the assay with precise temperature, timing, and reagent application for reproducibility.
Blocking Serum	Used to reduce non-specific background staining by occupying sites of non-specific protein interaction.
Hematoxylin Counterstain	Stains cell nuclei, providing histological context for the specific chromogen stain localization.
Chromogen (e.g., DAB)	Enzyme substrate that produces a visible, insoluble colored precipitate at the site of antibody binding.
Coverslipping Mountant	Preserves and provides clarity for the stained slide for microscopic evaluation and archival.
Whole Slide Scanner	Digital imaging system for creating high-resolution digital slides for analysis, archiving, and remote pathology review.

Application Notes

For a CLIA-certified laboratory performing verification of an FDA-approved IHC assay, compliance with regulatory requirements is foundational. The verification process must be executed within a robust quality management system. These notes outline the core pillars of CLIA compliance—Personnel, Quality Control (QC), and Proficiency Testing (PT)—as they specifically apply to the verification of an IHC assay in a research and drug development context.

Personnel: The complexity of IHC demands qualified individuals. The Laboratory Director, typically an MD or PhD with board certification, bears ultimate responsibility for the verification report's approval. Technical Supervisors oversee the day-to-day verification process, ensuring protocols are followed. Testing personnel must possess the education and training to perform precise microscopy, staining interpretation, and data analysis. Documented training records for the specific assay and platform are mandatory.

Quality Control (QC): QC is integrated throughout the verification lifecycle. This includes daily monitoring of instrumentation (e.g., stainers, refrigerators), use of control tissues (positive, negative, and system controls) with each run, and reagent QC. The verification study itself is a form of QC, establishing the assay's performance characteristics (accuracy, precision, reportable range) in your lab's environment. A key requirement is the establishment of a QC frequency and acceptability criteria that must be maintained for patient testing post-verification.

Proficiency Testing (PT): CLIA mandates successful participation in an approved PT program for each regulated analyte. For IHC, this typically involves the biannual evaluation of provided slides. For assays without a formal PT program, an alternative assessment (e.g., split-sample comparison with a reference lab, blinded internal re-testing) must be performed twice annually. Successful PT demonstrates the ongoing reliability of the lab's testing process post-verification.

The successful verification and subsequent clinical use of an FDA-approved IHC assay hinge on these interdependent pillars, ensuring data integrity for critical research and diagnostic decisions.

Protocols

Protocol 1: Verification of Analytical Accuracy for an FDA-Approved IHC Assay (Comparison to a Reference Method)

Objective: To establish the accuracy of the IHC assay under verification by comparing its results to those from an FDA-approved reference method or a validated assay from a reference laboratory.

Methodology:

• Sample Selection: Obtain a minimum of 30 residual, de-identified clinical specimens (formalin-fixed, paraffin-embedded blocks or slides) that encompass the assay's reportable range (e.g., negative, weak positive, strong positive for the target antigen). Ensure samples are from different patients.
• Testing with the New Assay: Section and stain all samples using the IHC assay and protocol under verification. Perform staining across multiple runs/days, using different instrument and reagent lots if possible.
• Testing with Reference Method: Have the same set of samples tested by the reference method at the external reference laboratory. Ensure the reference lab is blinded to the results from the lab under verification.
• Data Analysis: Have two qualified pathologists, blinded to the reference results and each other's scores, evaluate the IHC slides. Use the FDA-approved scoring system (e.g., H-score, percentage positivity). Calculate the percent agreement between the results from the lab under verification and the reference method.
• Acceptance Criteria: Establish pre-defined acceptance criteria (e.g., ≥90% overall agreement, or a kappa statistic ≥0.85).

Protocol 2: Establishment of Precision (Repeatability and Reproducibility)

Objective: To assess the assay's precision by determining its repeatability (within-run) and reproducibility (between-run, between-operator, between-day, between-lot).

Methodology:

• Sample Panel: Select 3-5 samples representing negative, low-positive, and high-positive expression levels.
• Experimental Design: Design a nested study to evaluate multiple variables.
  • Repeatability: One operator runs the same sample in replicate (n=3) on the same stainer, in the same run, with the same reagent lot.
  • Reproducibility: Different operators (n=2-3) test the sample panel across different days (n=5), using at least two different reagent lots and, if available, two different stainers.
• Staining and Evaluation: Perform all staining per the FDA-approved protocol. All slides are randomized and scored by at least two pathologists in a blinded fashion.
• Statistical Analysis: Calculate the coefficient of variation (%CV) for continuous scores (e.g., H-score) or percent agreement for categorical scores. Use analysis of variance (ANOVA) to quantify variance components.

Protocol 3: Implementation of Routine Quality Control and Proficiency Testing

Objective: To define the ongoing QC and PT procedures required post-verification to maintain CLIA compliance.

Methodology for Routine QC:

• Control Tissues: Identify and validate multitissue blocks containing known positive (weak and strong) and negative tissue for the target antigen.
• Run Frequency: These control slides must be included with every patient testing run.
• Acceptability Criteria: Define the expected staining pattern and intensity for each control. Document review and acceptance of controls before reporting patient results.
• Reagent QC: Log all reagent lots upon receipt. Perform a stain with new lots using the control tissues before patient testing.

Methodology for Proficiency Testing (PT):

• Enrollment: Enroll in a CMS-approved PT program for the specific analyte (e.g., CAP's IHC program).
• Testing: Perform testing on PT challenge slides exactly as patient samples, following the verified protocol.
• Review and Submission: Have results reviewed by the Laboratory Director and submitted by the deadline.
• Alternative Assessment (if no approved PT): For novel biomarkers, establish a biannual split-sample agreement study with a reference laboratory. A minimum of 5 samples covering the reportable range are tested by both labs, and agreement is calculated.

Data Presentation

Table 1: Summary of CLIA Personnel Requirements for High Complexity Testing (IHC)

Role	Minimum Qualifications (CLIA '88)	Key Responsibilities in Assay Verification
Laboratory Director	MD/DO with board certification, or PhD with certification & experience, or MD/DO/PhD with lab training/experience.	Final approval of verification plan and report; ensures adequate resources and personnel.
Technical Supervisor	MD/DO/PhD with specific experience, or Master's with 2 years experience, or Bachelor's with 4 years experience.	Designs/oversees verification procedures; resolves technical problems; approves QC protocols.
Clinical Consultant	MD/DO with lab director or consultant experience.	Provides consultation on test selection and result interpretation relevant to the assay's clinical claim.
General Supervisor	Same as TS, or qualified testing personnel with 2 years experience.	Day-to-day supervision of testing personnel and reporting; monitors QC/QA data.
Testing Personnel	Associate degree in lab science (or equivalent), or qualified through alternate route.	Performs the verification testing; follows procedures; documents results; performs routine QC.

Table 2: Example Accuracy Verification Data for an IHC PD-L1 Assay (n=40)

Sample ID	Reference Lab Result (% Positivity)	Verification Lab Result (% Positivity)	Within ±10% Agreement?
1-20 (Range: 0-90%)	[Various Values]	[Various Values]	20/20
Overall Agreement	---	---	95% (38/40)
Statistical Concordance	---	---	Cohen's kappa = 0.89

Table 3: Example Precision Study Results for an IHC Assay (H-Score, n=20 replicates)

Sample	Mean H-Score	Within-Run (Repeatability) %CV	Between-Day (Reproducibility) %CV	Between-Operator %CV
Negative	5.2	8.5%	12.1%	10.3%
Low Positive	45.8	6.2%	9.8%	8.7%
High Positive	185.3	4.1%	7.5%	6.9%
CLIA Implied Goal	---	<15%	<20%	<15%

Visualizations

IHC Assay Verification CLIA Compliance Workflow

CLIA Proficiency Testing Cycle for IHC

The Scientist's Toolkit: Research Reagent Solutions for IHC Verification

Item	Function in IHC Assay Verification
FDA-Approved Assay Kit	Contains the pre-validated primary antibody, detection system, and protocol. The foundation of the verification study.
Multitissue Control Blocks	Validated blocks containing known positive/negative tissues. Critical for daily QC and establishing assay performance limits.
Reference Standard Slides	Slides from the assay manufacturer or a reference lab with known reactivity. Used as a benchmark for accuracy studies.
Isotype Control Antibodies	Negative control antibodies matching the host species and isotype of the primary antibody. Essential for verifying staining specificity.
Antigen Retrieval Buffers	Solutions (e.g., citrate, EDTA) for unmasking epitopes. Optimization may be limited but must be validated per the FDA protocol.
Automated Stainer	Platform for consistent, standardized slide processing. Performance qualification is part of the verification.
Digital Slide Scanner	Enables whole slide imaging for remote pathologist review, archival, and quantitative image analysis (if part of the assay).
Cell Line Microarrays	Constructed from cell lines with known antigen expression levels. Useful for precision studies and lot-to-lot reagent testing.

Recent FDA and CMS Guidance Updates Impacting IHC Assay Validation

Recent regulatory updates from the FDA and the Centers for Medicare & Medicaid Services (CMS) have introduced significant changes to the validation and clinical use of immunohistochemistry (IHC) assays. These changes are critical for CLIA-certified laboratories developing and validating IHC assays, including those that are FDA-approved or laboratory-developed tests (LDTs). This application note provides a detailed analysis of the new requirements, quantitative data summaries, and actionable protocols for compliance and robust assay validation.

FDA's Final Guidance on "Principles for Codevelopment of an In Vitro Companion Diagnostic Device with a Therapeutic Product"

The FDA finalized this guidance to streamline the co-development of companion diagnostics (CDx) with targeted therapies. For IHC assays used as CDx, this mandates rigorous analytical and clinical validation tied to the therapeutic outcome.

FDA Draft Guidance on "Laboratory Developed Tests (LDTs)"

In October 2023, the FDA proposed a phased risk-based framework to actively oversee LDTs, which includes many IHC assays. This would subject high-risk IHC LDTs (e.g., companion diagnostics, prognostic tests) to pre-market review and ongoing quality system requirements.

CMS/CLIA Updates on "Clinical Laboratory Improvement Amendments"

CMS has emphasized stricter adherence to CLIA regulations for test validation, particularly for "modified" FDA-cleared/approved tests. Laboratories must now provide more extensive validation data when altering the intended use or operating characteristics of an FDA-approved IHC test.

Table 1: Comparative Analysis of Pre- and Post-Update Validation Requirements for IHC Assays

Validation Parameter	Previous CLIA Benchmark	New FDA/CMS Emphasis	Minimum Sample Size (New)
Analytical Sensitivity (LoD)	Semi-quantitative estimate	Quantitative cell line titration; statistical confidence	5 replicates across ≥5 dilution levels
Analytical Specificity (Cross-reactivity)	Limited panel testing	Extensive testing on tissues with related antigens	≥20 known positive/negative tissues
Precision (Repeatability & Reproducibility)	Intra-run, inter-run, inter-operator	Includes inter-instrument, inter-reagent lot, inter-day	≥3 runs, ≥3 lots, ≥5 operators, ≥20 samples
Assay Cut-point (for semi-quantitative IHC)	Often subjective, pathologist-defined	Statistically derived with pre-defined confidence intervals	≥60 independent samples across expected expression range
Robustness (Pre-analytical variables)	Often not formally tested	Mandatory evaluation of fixation time, antigen retrieval variability	≥10 samples per variable condition (e.g., 6hr vs 72hr fixation)

Application Note: Protocol for Comprehensive IHC Assay Validation Under New Guidelines

Protocol 1: Statistical Determination of Assay Cut-point for Biomarker Stratification

Objective: To establish a reproducible, statistically valid scoring cut-point for a semi-quantitative IHC assay (e.g., PD-L1, HER2) in compliance with new FDA guidance on LDTs.

Materials & Workflow: See The Scientist's Toolkit and Figure 1.

Procedure:

• Cohort Selection: Obtain a minimum of 60 residual, de-identified patient tissue specimens that represent the full spectrum of biomarker expression (negative, weak, moderate, strong). Ensure samples cover relevant disease stages and specimen types (e.g., biopsy, resection).
• Blinded Staining & Digitization: Perform the IHC assay on all samples across three separate runs using different reagent lots. Scan all slides at 20x magnification to generate whole slide images (WSIs).
• Digital Image Analysis (DIA): Use a validated DIA algorithm to generate a continuous score (e.g., H-score, percentage positivity) for each sample. Perform manual scoring by at least three board-certified pathologists blinded to DIA results and clinical data.
• Statistical Analysis:
  • Calculate the intraclass correlation coefficient (ICC) between pathologists and between pathologist consensus and DIA score.
  • Using the consensus score as the reference, perform receiver operating characteristic (ROC) analysis if a clinical outcome reference is available. Alternatively, use a method like maximally selected rank statistics to determine the cut-point that best separates the population into distinct scoring groups.
  • Establish a 95% confidence interval for the chosen cut-point using bootstrap resampling (e.g., 1000 iterations).
• Reporting: Document the final cut-point, its confidence interval, and the percentage of samples reclassified when the cut-point is applied to scores from different reagent lots or runs.

Protocol 2: Validation of Assay Robustness for Pre-analytical Variables

Objective: To systematically evaluate the impact of pre-analytical conditions on IHC assay performance, as required by enhanced CLIA oversight of modified tests.

Procedure:

• Variable Selection: Define variables: Cold ischemia time (0, 30, 60, 120 minutes), fixation time in 10% NBF (6, 24, 48, 72 hours), and antigen retrieval pH (6.0, 8.0, 9.0).
• Experimental Design: Use a minimum of 10 positive and 5 negative tissue control samples. Subject tissue cores from the same donor block to the different pre-analytical conditions using a tissue microarray (TMA) construct.
• Staining & Analysis: Stain the entire TMA in a single run to eliminate staining variability. Employ DIA to measure staining intensity (mean optical density) and percentage positivity.
• Acceptance Criteria: Define pre-specified acceptance criteria (e.g., <20% decrease in mean optical density compared to the standard condition). Use linear regression models to quantify the effect of each variable.
• Establish Tolerance Ranges: Document the range of each pre-analytical variable within which the assay performance remains within acceptance criteria. This defines the lab's required standard operating procedures.

Diagrams of Key Processes

Figure 1: Workflow for Statistical Cut-point Determination in IHC Validation (Max 760px)

Figure 2: Regulatory Pathways for IHC Assay Types (Max 760px)

The Scientist's Toolkit: Essential Reagents & Materials

Table 2: Key Research Reagent Solutions for IHC Validation Studies

Item	Function in Validation	Key Consideration for Compliance
Cell Line Microarray (CMA)	Contains cell lines with known, titrated antigen expression for precise analytical sensitivity (LoD) and linearity studies.	Use FDA-recognized standards (e.g., NCI-60 cell lines) when available.
Tissue Microarray (TMA)	Enables high-throughput analysis of multiple tissues under identical staining conditions for specificity and robustness studies.	Must include relevant positive, negative, and borderline cases with IRB approval.
Digitally-Annotated Control Slides	Whole slide images with pre-scored regions for training and competency assessment of pathologists.	Essential for establishing and maintaining inter-rater reliability per CLIA.
Continuous Quantitative DIA Software	Provides objective, continuous scores from IHC slides for statistical cut-point analysis and precision measurement.	Software must be validated for its intended use (ALGO validation).
Controlled Antigen Retrieval System	Ensures consistent pH, temperature, and time for epitope retrieval, a critical variable in robustness testing.	Required for documenting pre-analytical variable tolerance limits.
Lot-Tracked Primary Antibody & Detection Kit	Core components of the IHC assay. Testing across multiple lots is mandatory for precision.	Maintain documentation for chain of custody and reagent qualification.

Step-by-Step Protocol: Implementing and Running an FDA-Approved IHC Assay in Your CLIA Lab

Within the context of CLIA laboratory research for developing FDA-approved IHC assays, a rigorous pre-verification phase is critical. This phase ensures that all foundational components—reagents, instruments, and procedures—are controlled and characterized prior to full assay verification. Failure at this stage compromises subsequent data integrity and regulatory submissions.

Reagent Qualification

Reagent qualification establishes that critical reagents meet predefined specifications for performance and consistency. For IHC, this primarily involves primary antibodies and detection system components.

Primary Antibody Qualification Protocol

Objective: To determine optimal dilution, specificity, and sensitivity of a primary antibody for an IHC assay targeting a specific antigen (e.g., PD-L1).

Materials:

• Test antibody (clone specific)
• Isotype control antibody
• Positive control tissue cell line pellet with known antigen expression
• Negative control tissue cell line pellet
• Multiplex IHC validation tissue microarray (TMA) containing relevant tumor types
• Complete IHC detection kit (blocking serum, secondary antibody, label)
• Antigen retrieval solutions (pH 6 and pH 9)
• Staining platform

Methodology:

• Checkerboard Titration: Perform IHC staining on positive control tissue sections using a range of antibody dilutions (e.g., 1:50, 1:100, 1:200, 1:500) paired with two antigen retrieval conditions (pH 6 and pH 9).
• Specificity Assessment:
  • Perform staining with isotype control at the optimal concentration determined in step 1.
  • Perform peptide blockade: pre-incubate the primary antibody with a 10-fold molar excess of the target peptide for 1 hour, then use this mixture for staining.
  • Stain known negative control tissues.
• Robustness Testing: Using the optimal protocol, stain the multiplex TMA across three separate runs (inter-day) by two different technologists.
• Scoring & Analysis: Slides are scored by a qualified pathologist for signal intensity (0-3+), percentage of positive cells, and background staining. Inter-run consistency is calculated.

Data Presentation:

Table 1: Primary Antibody Qualification Results (Example: Anti-PD-L1 Clone 22C3)

Parameter	Acceptance Criterion	Result	Pass/Fail
Optimal Dilution	Clear signal with minimal background	1:150	Pass
Optimal Retrieval	Consistent high signal	pH 9 EDTA	Pass
Positive Control Signal	≥ 2+ intensity in known cells	3+ intensity	Pass
Negative Control (Isotype)	Signal intensity ≤ 1+	0	Pass
Peptide Blockade	≥ 80% signal reduction	95% reduction	Pass
Inter-Run CV (% Positive Cells)	≤ 20%	12%	Pass

Detection System Qualification

Qualifies the polymer-based detection system (e.g., HRP-polymer/DAB). Key parameters include lot-to-lot consistency, sensitivity, and absence of non-specific background.

Instrument Calibration

Calibration ensures that all instruments involved in sample processing and analysis operate within specified tolerances.

Automated IHC Stainer Calibration Protocol

Objective: To verify and adjust the dispensing volumes, temperature, and timing of an automated IHC stainer.

Materials:

• Certified calibration slides with hydrophobic grids
• Precision balance (0.1 mg sensitivity)
• Temperature verification device (traceable to NIST)
• Calibrated timer

Methodology:

• Volume Dispensing Accuracy:
  • Place a calibration slide on the balance and tare.
  • Program the stainer to dispense 100 µL of water onto the slide.
  • Record the weight. Calculate volume (1 mg = ~1 µL). Repeat for 5 primary reagent ports.
• Heated Plate Temperature Verification:
  • Place a temperature probe on the antigen retrieval heated plate.
  • Run a method that sets the plate to 97°C, 100°C, and 103°C.
  • Allow to stabilize and record temperature for 10 minutes at each set point.
• Incubation Timing Verification:
  • Use the stainer's event log to verify the start/stop times of a primary antibody incubation step set for 32 minutes against a calibrated external timer.

Data Presentation:

Table 2: IHC Stainer Calibration Tolerances and Results

Instrument Parameter	Tolerance Range	Measured Value	Status
Reagent Dispense Volume (100 µL target)	95 µL - 105 µL	98 µL, 101 µL, 99 µL	Within Spec
Antigen Retrieval Plate Temp (100°C setpoint)	99°C - 101°C	100.2°C ± 0.3°C	Within Spec
Primary Antibody Incubation (32 min)	31.5 min - 32.5 min	32.1 min	Within Spec

SOP Development

A controlled, detailed SOP is the cornerstone of a reproducible assay. It must unambiguously guide a trained technologist through the entire process.

SOP Development Framework for IHC Assay

Core Elements:

• Purpose and Scope: Defines the assay's intended use and limitations.
• Principle: Brief scientific rationale of the IHC detection method.
• Responsibilities: Roles of pathologist, technologist, lab manager.
• Materials and Reagents: List with catalog numbers, lot numbers, and preparation instructions.
• Instrumentation: List of calibrated equipment used.
• Safety Precautions: Handling of hazardous reagents (DAB, xylene).
• Step-by-Step Procedure:
  • Tissue sectioning and baking.
  • Deparaffinization and rehydration.
  • Antigen retrieval (method, pH, time, temperature).
  • Endogenous peroxidase blocking.
  • Protein blocking.
  • Primary antibody application (dilution, incubation time/temp).
  • Detection system application (step-by-step).
  • Counterstaining, dehydration, and coverslipping.
• Quality Control: Specification of run controls (positive, negative, isotype) and acceptance criteria for each run.
• Troubleshooting Guide: Common issues (e.g., high background, weak signal) and corrective actions.
• References and Revision History.

The Scientist's Toolkit

Table 3: Essential Research Reagent Solutions for IHC Assay Pre-Verification

Item	Function in Pre-Verification	Key Consideration
Certified Reference Tissues/TMAs	Provides consistent positive/negative controls for antibody titration and specificity testing.	Must encompass a range of expression levels and be relevant to the assay's intended use.
Isotype Control Antibodies	Distinguish specific signal from non-specific background binding of the primary antibody.	Should match the host species, immunoglobulin class, and conjugation of the primary antibody.
Competing Peptides	Confirm antibody specificity by demonstrating signal loss upon pre-adsorption with the target antigen.	Peptide sequence must match the exact epitope recognized by the antibody.
Calibration Slides & Tools	Verify the precision of automated stainers (dispensing volumes, temperatures).	Tools must be traceable to national standards (e.g., NIST).
Stable Detection Kit Substrates	Provides the enzymatic (e.g., HRP) detection and chromogenic (e.g., DAB) signal.	Qualified for lot-to-lot consistency and sensitivity. DAB should be pre-formulated for stability.
Validated Antigen Retrieval Buffers	Unmask hidden epitopes in formalin-fixed tissue. Critical for consistency.	pH (6 vs. 9) and buffer composition must be optimized and locked down for the final SOP.

Visualizations

Diagram 1: Pre-Verification Workflow for IHC Assay Development

Diagram 2: Core IHC Staining Protocol with Critical Control Points

Within the context of verifying FDA-approved IHC assays for CLIA laboratory research, a formal verification plan is mandatory to ensure test performance meets manufacturer claims and is suitable for the specific patient population. This protocol outlines the experimental approach for establishing four fundamental analytical performance characteristics: Accuracy, Precision, Reportable Range, and Reference Intervals. The data generated supports the broader thesis on implementing robust, compliant assay verification frameworks in drug development research.

Accuracy Verification

Objective: To determine the closeness of agreement between the test result value obtained by the IHC assay and an accepted reference value.

Experimental Protocol:

• Sample Selection: Obtain 20 formalin-fixed, paraffin-embedded (FFPE) tissue samples with known, well-characterized biomarker status. Include 5 positive, 5 negative, and 10 samples with varying expression levels (weak, moderate, strong) as determined by a validated orthogonal method (e.g., PCR, flow cytometry, or a previously validated IHC assay from a different vendor).
• Staining Procedure: Process all samples in a single batch using the FDA-approved IHC test kit according to the manufacturer's Instructions for Use (IFU). Include all recommended controls.
• Evaluation: A minimum of two qualified pathologists, blinded to the reference values, will independently score the slides using the manufacturer's defined scoring criteria (e.g., H-score, percentage of positive cells, intensity).
• Data Analysis: Calculate percent agreement (for categorical results) or correlation coefficients (e.g., Pearson's r for continuous scores) and Bland-Altman analysis against the reference values.

Table 1: Accuracy Verification Results

Sample ID	Reference Value (H-score)	Test Result (H-score)	Pathologist Agreement	Concordance
Ref-01	0 (Neg)	0	Yes	Yes
Ref-02	50 (Weak+)	55	Yes	Yes
Ref-03	120 (Mod+)	115	Yes	Yes
Ref-04	250 (Strong+)	245	Yes	Yes
...	...	...	...	...
Overall	N=20	Correlation: r=0.98	Inter-rater κ=0.92	95% Concordance

Precision Verification

Objective: To assess the degree of reproducibility (repeatability and reproducibility) of the IHC assay under defined conditions.

Experimental Protocol:

• Sample Panel: Select three FFPE tissue samples representing negative, low-positive, and high-positive expression levels.
• Repeatability (Within-Run): A single operator will stain each sample three times in a single run (same day, same reagent lot, same instrument).
• Intermediate Precision (Between-Run): The same operator will stain each sample once per day for five consecutive days, using the same instrument but fresh reagent preparations.
• Reproducibility (Between-Operator/Instrument): Two additional operators will stain each sample once on different, but equivalent, automated stainers.
• Evaluation: All slides will be scored by a single pathologist. The coefficient of variation (CV%) for continuous scores or percent agreement for categorical scores will be calculated.

Table 2: Precision Verification Results (H-score CV%)

Precision Level	Negative Sample	Low-Positive Sample	High-Positive Sample
Repeatability (n=3)	5.2%	7.8%	4.1%
Intermediate (n=5 days)	8.5%	10.3%	6.7%
Reproducibility (n=3 ops)	12.1%	15.5%	9.8%

Reportable Range Verification

Objective: To confirm the range of biomarker expression (e.g., from 0% to 100% positive cells, or minimum to maximum H-score) that can be reliably measured by the assay without dilution or concentration.

Experimental Protocol:

• Sample Selection: Acquire or create a tissue microarray (TMA) containing at least 10 cores spanning the entire anticipated expression range, from definitively negative to the highest anticipated positive.
• Staining and Analysis: Stain the TMA following the standard protocol. Two pathologists will score each core.
• Linearity Assessment: If applicable, perform a dilution series using a cell line pellet or high-expressing tissue sample diluted with negative tissue/control material. Score the dilution series.
• Data Interpretation: The reportable range is verified if all samples within the manufacturer's claimed range are accurately and reproducibly scored without need for protocol modification.

Table 3: Reportable Range Assessment (Example: HER2 IHC)

Sample Type	Expected Result (Score)	Observed Result (Score)	Within Claimed Range?
Known Negative	0 (0)	0 (0)	Yes
1+ Expression	1+	1+	Yes
2+ Expression	2+	2+	Yes
3+ Expression	3+	3+	Yes
Dilution Series 1:2	2+	2+	Yes
Dilution Series 1:4	1+	1+	Yes

Reference Interval Verification

Objective: To verify or establish the expected distribution of test results (positive, negative, equivocal) in the laboratory's specific patient population for whom the test is intended.

Experimental Protocol:

• Sample Selection: Retrospectively collect a minimum of 20 patient samples that are representative of the laboratory's intended-use population. Ensure samples are de-identified and IRB-approved.
• Testing: Run all samples using the verified IHC assay under standard conditions.
• Data Analysis: Calculate the proportion of samples falling into each diagnostic category (e.g., negative, positive). Compare the distribution to the manufacturer's stated prevalence or expected intervals. If significant discrepancy exists, a larger sample size (n≥120) may be needed to establish laboratory-specific intervals.

Table 4: Reference Interval Verification Results (Example: PD-L1 ≥1%)

Patient Population	Sample Size (n)	Manufacturer's Claim	Observed Prevalence	Verification Outcome
NSCLC, Adenocarcinoma	40	~50% Positive	48% Positive	Verified
NSCLC, Squamous Cell	40	~40% Positive	35% Positive	Verified
Total	80	~45%	41%	Pass

The Scientist's Toolkit: Key Research Reagent Solutions

Table 5: Essential Materials for IHC Assay Verification

Item	Function in Verification	Example/Notes
FDA-approved IHC Kit	Core test components (antibody, detection system).	Must be used per IFU without modification.
Characterized FFPE Tissues	Samples with known biomarker status for accuracy studies.	Commercial reference standards or internally characterized biopsies.
Tissue Microarray (TMA)	Efficient platform for reportable range and precision studies.	Custom-built or commercial TMAs with graded expression.
Orthogonal Method Kit	Provides reference values for accuracy (e.g., FISH, PCR).	Must be a validated method distinct from IHC.
Automated Stainer	Ensures consistent reagent application and incubation times.	Critical for reproducibility studies.
CLSI Guideline Documents	EP05, EP06, EP07, EP12, EP17, EP28	Provide standardized experimental frameworks.
Digital Pathology Scanner	Enables whole slide imaging for centralized, blinded review.	Facilitates inter-rater reliability assessment.
Statistical Software	For data analysis (CV%, correlation, agreement, CI calculation).	SAS, JMP, R, or MedCalc.

1. Introduction & Scope This Application Note details the standardized, end-to-end workflow for Immunohistochemistry (IHC) testing in a CLIA-certified laboratory environment, specifically within the context of verifying FDA-approved/cleared companion diagnostic assays for clinical research. The protocol ensures analytical validity, reproducibility, and traceability from specimen receipt to final digital pathology interpretation, adhering to 21 CFR Part 820 (Quality System Regulation) and CLIA '88 requirements.

2. Quantitative Data Summary: Key Performance Indicators (KPIs) for IHC Verification The verification of an FDA-approved assay requires establishing baseline performance metrics against the manufacturer's claims. The following table summarizes target acceptance criteria for a typical IHC assay verification study.

Table 1: Acceptance Criteria for IHC Assay Verification (Example: HER2 IHC)

Performance Parameter	Method of Assessment	Target Acceptance Criterion	Quantitative Benchmark
Precision (Repeatability)	Intra-run, same operator, same day	≥ 95% Agreement	38/40 slides concordant
Precision (Reproducibility)	Inter-run, different operators/days	≥ 90% Agreement	36/40 slides concordant
Accuracy	Comparison to FDA-approved reference method (e.g., FISH)	≥ 95% Concordance	Positive & Negative Percent Agreement >95%
Analytical Sensitivity	Staining of low-expressing control cell lines	Score within 1+ of expected	Consistent 1+ stain in 0.5+ control
Analytical Specificity	Staining with/without primary Ab; Isotype control	No specific staining in negative controls	0% reactivity in negative controls (n=5)
Robustness	Deliberate minor changes to protocol (e.g., +/- 10% incubation time)	No change in final scoring outcome	≥ 90% agreement with baseline

3. Detailed Experimental Protocol: IHC Verification Workflow

Protocol 3.1: Specimen Receipt, Accessioning, and Gross Examination

• Materials: Laboratory Information System (LIS), pre-printed barcodes, 10% Neutral Buffered Formalin (NBF), specimen containers.
• Procedure:
  • Log specimen into LIS, generating a unique accession number.
  • Affix barcode label to requisition, cassette, and slide.
  • Perform gross examination, document tissue dimensions.
  • Section tissue to ≤ 4mm thickness and place in cassette.
  • Immerse cassette in sufficient volume of 10% NBF (10:1 fixative:tissue ratio) for 6-72 hours at room temperature.

Protocol 3.2: Tissue Processing, Embedding, and Sectioning

• Materials: Automated tissue processor, paraffin wax, embedding molds, microtome, charged glass slides.
• Procedure:
  • Process fixed tissue through graded alcohols, xylenes, and paraffin wax using an automated, validated protocol.
  • Embed tissue in paraffin block, orienting diagnostically relevant surface downward.
  • Section block at 3-5 μm thickness using a microtome.
  • Float sections on a warm water bath (40-45°C) to remove wrinkles.
  • Mount sections on positively charged glass slides.
  • Dry slides overnight at 37°C or for 1 hour at 60°C.

Protocol 3.3: Automated IHC Staining (Using FDA-Approved Kit)

• Materials: FDA-approved IHC kit (e.g., Ventana UltraView DAB for HER2), automated staining platform (e.g., Ventana Benchmark, Leica Bond), validated primary antibody, EZ Prep/EDTA Cell Conditioning solution.
• Procedure:
  • Deparaffinization & Epitope Retrieval: Load slides onto platform. Run standardized cycle for dewaxing and heat-induced epitope retrieval using vendor-specified buffer (e.g., EDTA pH 8.5, 95°C, 52 min).
  • Primary Antibody Incubation: Apply validated, prediluted primary antibody. Incubate for specified duration and temperature (e.g., 32 min at 37°C). Platform performs rinses.
  • Detection: Apply universal HRP multimer-based detection system per kit instructions (e.g., incubate with linker, then HRP enzyme conjugate).
  • Visualization: Apply DAB chromogen/substrate mixture. Incubate for precisely controlled time (e.g., 8 min). Monitor via included reaction intensity controls.
  • Counterstaining & Coverslipping: Apply hematoxylin counterstain. Rinse, dehydrate through alcohols, and apply permanent mounting medium and glass coverslip.

Protocol 3.4: Digital Pathology Interpretation & Scoring

• Materials: Whole Slide Imaging (WSI) scanner, FDA-approved digital pathology viewer, validated scoring algorithm (if AI-assisted).
• Procedure:
  • Scan stained slide at 20x or 40x magnification using validated WSI scanner.
  • Pathologist accesses digital slide via secure, 21 CFR Part 11-compliant viewer.
  • Assess stained slide using FDA-approved scoring guidelines (e.g., ASCO/CAP HER2 scoring criteria).
  • For AI-assisted read, the algorithm pre-annotates regions of interest, which are then reviewed and confirmed by the pathologist.
  • Enter final score into LIS; report generated with traceable audit trail.

4. Visualization: Workflow and Pathway Diagrams

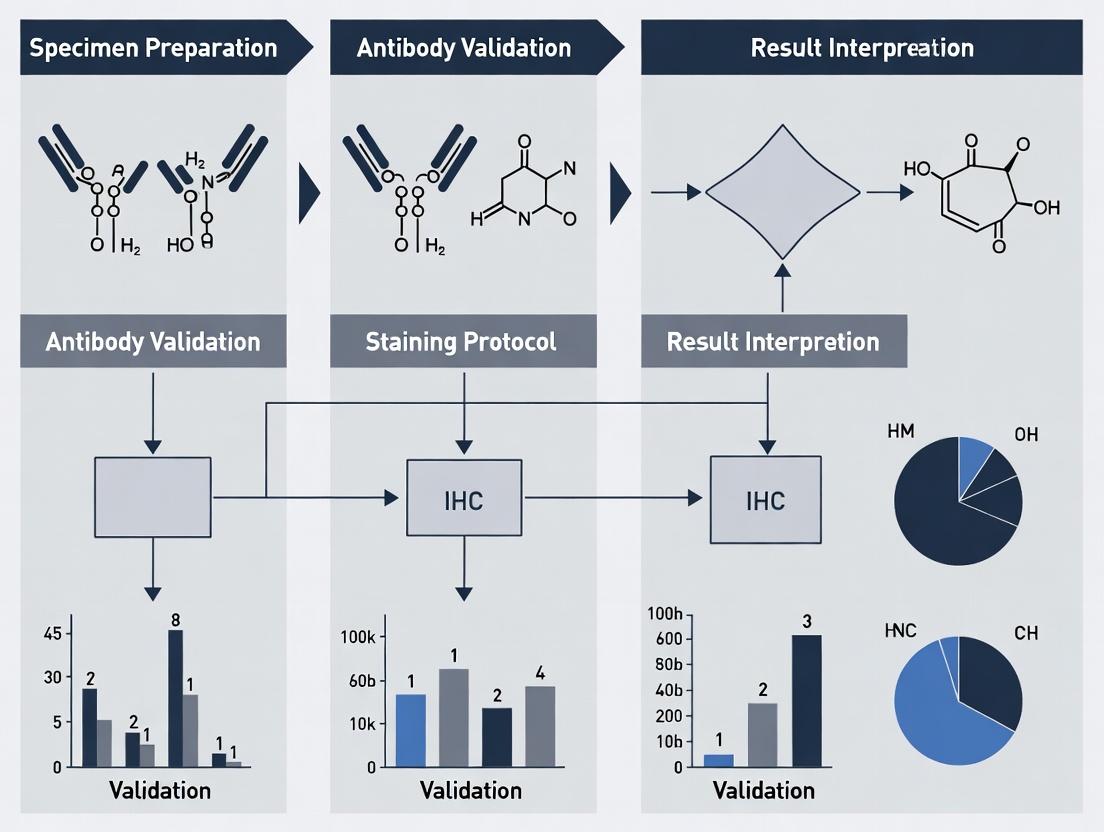

Title: IHC Clinical Research Workflow

Title: IHC Detection Chemistry Pathway

5. The Scientist's Toolkit: Key Research Reagent Solutions

Table 2: Essential Materials for IHC Verification Studies

Item	Function in Protocol	Example Product/Catalog #
FDA-Approved IHC Kit	Provides the validated detection system, buffers, and chromogen for the specific biomarker.	Ventana UltraView DAB Universal Kit (05966384001)
Validated Primary Antibody	Specifically binds the target antigen of interest; clone and dilution are locked per FDA filing.	Anti-HER2/neu (4B5) Rabbit Monoclonal Primary Antibody (790-2991)
Cell Line / Tissue Microarray Controls	Provides known positive, negative, and variable expression controls for daily run validation.	FDA-defined HER2 Control Slides (e.g., 0, 1+, 2+, 3+)
Isotype Control Antibody	Controls for non-specific binding of the primary antibody due to Fc receptors or charge.	Rabbit Monoclonal IgG Isotype Control (e.g., DA1E)
Automated Staining Platform	Provides standardized, hands-off processing for deparaffinization, retrieval, staining, and coverslipping.	Ventana Benchmark Ultra (08057005001)
Charged/Plus Slides	Prevents tissue detachment during rigorous retrieval and staining steps.	Fisherbrand Superfrost Plus (12-550-15)
Epitope Retrieval Buffer	Reverses formalin-induced cross-links to expose antigenic epitopes for antibody binding.	EDTA-based, pH 9.0 (Tris-based, pH 8.5 also common)
Digital Pathology System	Enables whole slide imaging, remote interpretation, quantitative analysis, and data archiving.	Philips IntelliSite Ultra Fast Scanner

Integrating Digital Pathology and Quantitative Image Analysis for Enhanced Reproducibility

The verification of FDA-approved immunohistochemistry (IHC) assays within CLIA-certified laboratories demands rigorous, reproducible, and quantitative methodologies. Traditional manual pathological assessment, while essential, introduces inter- and intra-observer variability. Integrating whole-slide imaging (digital pathology) with subsequent quantitative image analysis (QIA) establishes an objective, data-driven framework. This approach is critical for the precise measurement of biomarkers (e.g., HER2, PD-L1, ER/PR) in therapeutic decision-making and drug development, aligning with the FDA’s emphasis on computational pathology and assay reproducibility in clinical research.

Application Notes: Key Benefits and Implementation Strategy

Core Benefits for CLIA Lab Research

• Standardization: Elimination of subjective manual scoring (e.g., H-score, Allred score) through algorithm-driven quantification.
• Traceability: Permanent digital archive of slides enables re-analysis, audit trails, and peer review.
• Multiparametric Analysis: Simultaneous quantification of intensity, subcellular localization, and co-expression patterns beyond human capability.
• Regulatory Alignment: Supports compliance with 21 CFR Part 11 for electronic records and FDA’s Technical Performance Assessment of Quantitative Image Analysis guidance.

Implementation Workflow

The successful deployment requires a structured pipeline: Tissue Preparation → Digital Slide Acquisition → Image Analysis Algorithm Validation → Result Reporting.

Experimental Protocols

Protocol: Digital Workflow for FDA-Approved IHC Assay Re-verification

Objective: To re-verify the performance of an FDA-approved IHC assay (e.g., PD-L1 22C3 pharmDx) using a digital QIA pipeline in a CLIA research setting.

Materials:

• Tissue Samples: 20 retrospective, de-identified patient samples (FFPE blocks) with known biomarker status, encompassing the assay's dynamic range (negative, low, high).
• IHC Reagents: FDA-approved assay kit with matched positive/negative controls.
• Slide Scanner: Calibrated whole-slide imaging system (e.g., Leica Aperio AT2, Philips Ultra Fast Scanner).
• QIA Software: FDA-cleared or validated image analysis platform (e.g., Visiopharm, Halo, QuPath).
• Validation Software: Statistical analysis software (e.g., JMP, R).

Methodology:

• Slide Preparation: Cut 4μm serial sections. Perform IHC staining strictly per the FDA-approved kit's instructions using automated stainers. Include daily run controls.
• Digitalization:
  • Perform calibration of the scanner using a provided calibration slide.
  • Scan all slides at 20x magnification (0.5 μm/pixel resolution is typical).
  • Use consistent focus and exposure settings. Save images in a lossless format (e.g., .svs, .tif).
• Algorithm Application:
  • Load the digital slides into the QIA software.
  • Apply a pre-validated algorithm for the specific biomarker. For PD-L1 (22C3), this typically involves: a. Tissue detection to define the region of interest (tumor parenchyma). b. Cell segmentation to identify individual tumor cells. c. Marker quantification: measuring the optical density of DAB chromogen in the membrane of each cell.
  • The algorithm outputs the Combined Positive Score (CPS): (Number of PD-L1 staining cells (tumor cells, lymphocytes, macrophages) / Total number of viable tumor cells) x 100.
• Data Analysis & Comparison:
  • Compare the QIA-generated CPS scores with the original manual pathologist scores (the reference standard) using statistical measures of concordance (see Table 1).
  • Assess precision via repeatability (same slide, multiple analyses) and reproducibility (different days, different operators).

Protocol: Analytical Validation of a Custom QIA Algorithm

Objective: To establish the analytical validity of a laboratory-developed QIA algorithm for a biomarker not yet FDA-cleared, following CLIA and CAP guidelines.

Methodology:

• Precision (Repeatability & Reproducibility):
  • Select 5 representative slides covering low, medium, and high expression.
  • One analyst runs the analysis on the same slide 10 times (within-run precision).
  • Three analysts run the analysis on the same slides over three different days (between-run precision).
  • Calculate the Coefficient of Variation (%CV) for continuous data (e.g., H-score) or Cohen's Kappa for categorical data.
• Accuracy/Concordance:
  • Analyze a cohort of 50-100 previously characterized cases.
  • Compare the QIA result against the consensus score of at least two board-certified pathologists.
  • Calculate overall percent agreement, positive percent agreement, and negative percent agreement.
• Linearity & Sensitivity:
  • Use a tissue microarray (TMA) with cell line controls expressing known, graded levels of the target antigen.
  • Plot QIA output (e.g., mean optical density) against expected values. Assess the correlation coefficient (R² > 0.95 is desirable).

Table 1: Representative Concordance Data for PD-L1 CPS Scoring (Manual vs. QIA)

Sample ID	Manual CPS (Pathologist)	QIA CPS (Algorithm)	Agreement Category
PT-01	5	6	Concordant (Low)
PT-02	45	48	Concordant (High)
PT-03	1	1	Concordant (Negative)
PT-04	22	28	Discordant
...	...	...	...
Statistical Metric	Value	95% CI	Interpretation
Overall % Agreement	92%	85-96%	High Concordance
Positive % Agreement	94%	87-98%	High Sensitivity
Negative % Agreement	90%	82-95%	High Specificity
Cohen's Kappa (κ)	0.85	0.78-0.92	Almost Perfect Agreement

Table 2: Precision Analysis of a QIA Algorithm for HER2 Membrane Staining

Sample	Target HER2 IHC Score	Mean H-Score (QIA)	Within-Run %CV (n=10)	Between-Day %CV (n=3 days)
Control A	0	15	3.2%	8.5%
Control B	1+	85	5.1%	10.2%
Control C	2+	155	4.8%	9.8%
Control D	3+	285	2.7%	7.3%
Acceptance Criterion			<10%	<15%

Visualization Diagrams

Digital IHC Verification Workflow

QIA Algorithm Validation Parameters

The Scientist's Toolkit: Research Reagent & Solution Essentials

Item	Category	Function in Digital IHC/QIA
FDA-approved IHC Kit (e.g., PD-L1 22C3)	Reagent	Provides standardized, validated antibodies and detection chemistry for consistent staining, the foundational input for analysis.
FFPE Tissue Controls (Positive/Negative/Gradient)	Biological Control	Essential for daily run validation, algorithm training, and monitoring of staining and analysis performance.
Calibrated Whole-Slide Scanner	Instrument	Converts the physical glass slide into a high-resolution, digital image file for computational analysis. Requires periodic calibration.
Validated QIA Software (e.g., Visiopharm)	Software	The analytical engine. Contains the algorithms for tissue segmentation, cell detection, and biomarker quantification. Must be validated for clinical research use.
Digital Slide Management System	Software/Infrastructure	Securely stores, manages, and retrieves large whole-slide image files, often with integrated analysis tools and audit trails.
Optical Density Calibration Slide	Tool	Allows for scanner calibration to ensure color and intensity fidelity across different imaging sessions, critical for quantitation.
Statistical Analysis Package (e.g., JMP, R)	Software	Used to perform correlation, concordance, and precision statistics to validate the QIA output against the gold standard.

Within the framework of verifying FDA-approved IHC assays for use in a CLIA-certified laboratory, creating an audit-ready verification record is a non-negotiable regulatory requirement. This process, distinct from full validation, demonstrates that the FDA-approved test performs as intended within the specific laboratory’s environment. Meticulous documentation and rigorous data management form the bedrock of this verification, providing evidence of compliance with CLIA regulations (42 CFR Part 493), FDA guidance, and the laboratory’s own Quality Management System (QMS).

Foundational Principles of Audit-Ready Documentation

An audit-ready record is characterized by the ALCOA+ principles: Attributable, Legible, Contemporaneous, Original, Accurate, plus Complete, Consistent, Enduring, and Available. For IHC verification, this translates to a seamless chain of custody and documentation for every step—from reagent receipt to slide scoring and data analysis.

Core Components of the Verification Record

The verification record for an FDA-approved IHC assay must include the following key documents:

• Verification Plan: A pre-approved protocol defining scope, acceptance criteria, sample cohorts, and statistical methods.
• Procedure and Training Records: Evidence of validated SOP implementation and analyst competency.
• Reagent and Instrument Records: Certificates of Analysis, lot-specific tracking, and equipment calibration/maintenance logs.
• Raw Data: Primary data including stained slides, scan images, scoring sheets, and instrument printouts.
• Analysis and Summary Report: Final report comparing observed performance to manufacturer's claims and pre-defined acceptance criteria.
• Change Control and Deviation Documentation: Records addressing any protocol deviations or unplanned events.

Experimental Protocols for Key Verification Experiments

Protocol: Verification of Assay Precision (Repeatability and Reproducibility)

Objective: To confirm the assay's precision under conditions of repeatability (same run, operator, equipment) and reproducibility (different days, operators, equipment) as per CLSI guideline EP05-A3.

Materials: See "Research Reagent Solutions" table (Section 7.0). Sample Cohort: 20 formalin-fixed, paraffin-embedded (FFPE) tissue samples spanning the assay's dynamic range (5 negative, 5 low-positive, 5 moderate-positive, 5 high-positive). All samples are from residual, de-identified specimens under an IRB-approved protocol.

Methodology:

• Repeatability: A single operator stains the 20-sample cohort in one run, using a single lot of reagents and one calibrated instrument. This is performed once.
• Reproducibility: The 20-sample cohort is stained in three separate runs. Variables are introduced: two different operators, two different reagent lots, and runs on three different days.
• Staining & Analysis: Perform IHC per the FDA-approved package insert. Slides are scanned, and scoring is performed by two independent, qualified pathologists blinded to the expected result and run conditions. Use the scoring method defined in the insert (e.g., H-score, percentage of positive cells).
• Data Analysis: Calculate the coefficient of variation (CV%) for continuous scores (e.g., H-score) or percent agreement for categorical scores (Positive/Negative) across all conditions.

Protocol: Verification of Assay Accuracy (Method Comparison)

Objective: To establish accuracy by comparing results from the laboratory's verification process to the truth standard defined by the manufacturer's claims.

Materials: As above. Sample Cohort: 30 FFPE samples with known status, as established by the FDA-approved test's clinical trial data (if available) or via orthogonal validated method. Cohort includes known negatives, positives, and borderline cases.

Methodology:

• Stain all 30 samples using the verified SOP.
• Perform blinded, independent pathological review.
• Compare the laboratory's results to the pre-defined expected results for each sample.
• Data Analysis: Calculate diagnostic sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), and overall percent agreement. Construct a 2x2 contingency table.

Data Presentation and Analysis

Table 1: Precision (Reproducibility) Study Results for IHC H-Score

Sample ID	Expected Range	Run 1 (Op A, Lot 1)	Run 2 (Op B, Lot 1)	Run 3 (Op A, Lot 2)	Mean H-Score	SD	CV%
Low-pos 1	50-100	72	68	75	71.7	3.5	4.9%
Low-pos 2	50-100	81	77	84	80.7	3.5	4.3%
Mod-pos 3	150-200	165	158	172	165.0	7.0	4.2%
High-pos 4	250-300	285	278	290	284.3	6.0	2.1%
Aggregate CV% (All Positive Samples)							<5.0%

Acceptance Criterion: Aggregate CV% for reproducibility ≤15% (assay-dependent; typical for IHC).

Table 2: Accuracy (Method Comparison) Study Results

Laboratory Result	Truth Standard: Positive	Truth Standard: Negative	Total
Positive	24 (True Pos)	1 (False Pos)	25
Negative	0 (False Neg)	5 (True Neg)	5
Total	24	6	30
Metric	Calculation	Result	Acceptance Criterion
Sensitivity	24/(24+0)	100%	≥95%
Specificity	5/(1+5)	83.3%	≥90%
Overall Agreement	(24+5)/30	96.7%	≥90%

Visualization of Processes

Diagram 1: IHC Verification and Documentation Workflow

Diagram 2: Hierarchy of an Audit-Ready Verification Record

The Scientist's Toolkit: Research Reagent Solutions

Item	Function in IHC Verification	Critical Documentation Link
FDA-approved IHC Kit	Primary antibody, detection system, and controls. The core reagent under verification.	Certificate of Analysis (CoA), package insert, internal lot number tracking.
Multitissue Control Block	FFPE block containing tissues with known expression levels. Serves as run control for staining precision.	SOP for control block preparation, expected staining pattern document.
Validated FFPE Samples	Residual, characterized patient samples spanning assay dynamic range. The test matrix for experiments.	IRB/Waiver documentation, sample annotation log, prior test results.
Automated Stainer	Instrument for standardized reagent application and incubation. Key variable in reproducibility.	Calibration certificates, maintenance logs, software validation records.
Whole Slide Scanner	Digitizes slides for remote, quantitative, or archival analysis.	Calibration records, scan profile SOP, image file metadata.
Laboratory Information Management System (LIMS)	Tracks samples, reagents, workflows, and stores structured data. Ensures data integrity and traceability.	System validation report, audit trail functionality, backup logs.
Electronic Lab Notebook (ELN)	Captures experimental protocols, observations, and results in a structured, attributable format.	Part 11 compliance assessment, user access records.

Solving Common IHC Challenges: Optimization and Troubleshooting for Robust Assay Performance

This document details critical protocols and considerations for managing pre-analytical variables in immunohistochemistry (IHC), specifically within the framework of verifying FDA-approved IHC assays for CLIA laboratory research. Consistent and reliable results in drug development and clinical research hinge on stringent control of tissue fixation, processing, and antigen retrieval.

Quantitative Impact of Pre-Analytical Variables

Table 1: Effect of Fixation Time on Antigen Signal Intensity (H-Score) for Common Biomarkers

Biomarker (Clone)	Optimal Fixation Time (Hours)	Signal Reduction at 6 hrs (%)	Signal Reduction at 72 hrs (%)	Primary FDA-Approved Assay Context
ER (SP1)	6-24	5%	60%	Companion Diagnostic (Breast)
HER2 (4B5)	6-48	8%	45%	Companion Diagnostic (Breast/GA)
PD-L1 (22C3)	18-48	15%	70%	Companion Diagnostic (Multiple)
Ki-67 (MIB-1)	8-24	10%	50%	Prognostic (Multiple)

Table 2: Antigen Retrieval Method Comparison for Archived FFPE Tissues

Retrieval Method	pH Buffer	Typical Time/Temp	Optimal for Antigen Class	Success Rate in Restoration (%)*
Heat-Induced (HIER)	6.0	20 min, 97°C	Nuclear (ER, PR)	95%
Heat-Induced (HIER)	9.0	20 min, 97°C	Membrane (HER2, PD-L1)	98%
Enzymatic (Protease)	N/A	5 min, 37°C	Cytoplasmic (Cytokeratins)	85%
Combined HIER & Mild Enzymatic	8.0	15 min, 97°C + 2 min Protease	Cross-linked epitopes	99%

*Success rate defined as achieving ≥90% of optimal H-Score from perfectly controlled pre-analytical conditions.

Detailed Experimental Protocols

Protocol 2.1: Standardized Fixation Validation for Assay Verification

Purpose: To establish and verify the acceptable fixation window for a specific FDA-approved IHC assay. Materials: Fresh tissue specimen, 10% Neutral Buffered Formalin (NBF), cassette, graded ethanol, xylene, paraffin, microtome. Procedure:

• Tissue Division: Aliquot fresh tissue into at least 5 identical samples immediately upon collection.
• Controlled Fixation: Immerse each sample in 10x volume of 10% NBF at room temperature for varying durations: 1 hour, 6 hours, 18-24 hours (optimal target), 48 hours, and 72 hours.
• Standardized Processing: After fixation, process all samples identically through a validated processor: 70% EtOH (1 hr), 95% EtOH (1 hr), 100% EtOH (2 changes, 1 hr each), Xylene (2 changes, 1 hr each), Paraffin (2 changes, 1 hr each).
• Embedding and Sectioning: Embed samples in paraffin blocks. Section at 4 µm thickness, float in 40°C water bath, mount on charged slides, and dry at 60°C for 1 hour.
• Staining and Analysis: Perform the FDA-approved IHC protocol on all slides in a single run. Use a calibrated image analyzer to quantify staining intensity (H-score or % positivity). Compare results against the 18-24 hour reference standard.

Protocol 2.2: Optimization of Antigen Retrieval for Archived Tissues

Purpose: To retrieve optimal antigenicity from formalin-fixed, paraffin-embedded (FFPE) tissues, particularly for challenging targets. Materials: Deparaffinized slides, antigen retrieval buffer (pH 6.0 and pH 9.0), water bath or pressure cooker, protease enzyme (e.g., pepsin). Procedure:

• Deparaffinization: Bake slides at 60°C for 20 min. Deparaffinize in xylene (3 changes, 5 min each). Hydrate through graded ethanol (100%, 95%, 70%) to distilled water.
• Retrieval Buffer Selection: Based on the target antigen, select retrieval buffer (pH 6.0 for nuclear, pH 9.0 for membrane/cytoplasmic). Pre-heat buffer in a retrieval chamber (water bath or pressure cooker) to 97°C (water bath) or 121°C (pressure cooker).
• Heat-Induced Epitope Retrieval (HIER): Immerse slides in pre-heated buffer. Incubate for 20 minutes at 97°C in a water bath or for 3 minutes at 121°C in a pressure cooker.
• Cooling: Remove container from heat and allow slides to cool in the buffer for 20-30 minutes at room temperature.
• Rinsing: Rinse slides gently in distilled water, then place in wash buffer (e.g., PBS or Tris buffer).
• Optional Enzymatic Step: For stubborn epitopes, after HIER and cooling, treat slides with a mild protease (e.g., 0.05% pepsin in 0.01N HCl) at 37°C for 2-5 minutes. Rinse thoroughly with wash buffer.
• Proceed to Staining: Immediately proceed to the automated or manual IHC staining protocol's blocking and primary antibody incubation steps.

Visualizations

Title: IHC Pre-Analytical Workflow with Pitfalls

Title: Mechanism of Epitope Masking and Retrieval

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Reagents and Materials for Controlled Pre-Analytical Workflow

Item	Function in Pre-Analytical Phase	Key Consideration for Verification
10% Neutral Buffered Formalin (NBF)	Standardized fixative. Maintains tissue morphology and antigen integrity.	Use fresh, sealed stocks (<1 year old). pH must be 7.0-7.4.
Automated Tissue Processor	Provides consistent, timed dehydration, clearing, and infiltration with paraffin.	Program must be validated for specific tissue types; reagent freshness is critical.
Low-Melting Point Paraffin	Embedding medium. Must fully infiltrate tissue without inducing heat damage.	Use high-quality, filtered paraffin designed for IHC.
Charged Microscope Slides	Prevents tissue section detachment during rigorous retrieval and staining.	Essential for automated staining platforms. Must be from a consistent supplier.
pH 6.0 Citrate-Based Retrieval Buffer	Low-pH retrieval solution optimal for many nuclear antigens (e.g., ER, p53).	Check pH monthly; prepare fresh or use commercial, stable formulations.
pH 9.0 Tris/EDTA-Based Retrieval Buffer	High-pH retrieval solution optimal for many membrane antigens (e.g., HER2, CD markers).	More stable than low-pH buffers but requires monitoring for precipitate formation.
Protease Enzyme (e.g., Pepsin, Trypsin)	Mild enzymatic digestion to augment HIER for heavily cross-linked epitopes.	Concentration and time are critical; over-digestion destroys tissue architecture.
Validated Positive Control Tissue Microarray (TMA)	Contains cores of tissues with known antigen expression levels. Run with every batch.	Must be fixed and processed identically to test samples. Crucial for run-to-run monitoring.

In the context of IHC assay verification for FDA-approved tests within a CLIA laboratory research environment, optimizing staining performance is critical for generating reproducible, reliable, and clinically actionable data. This document outlines a systematic approach to diagnosing and resolving three common staining challenges: high background, weak or absent signal, and non-specific binding.

Key quantitative metrics and troubleshooting parameters for IHC staining issues are summarized in the table below.

Table 1: Common IHC Staining Issues and Diagnostic Parameters

Issue Category	Potential Cause	Diagnostic Checkpoint	Typical Optimal Range / Solution
High Background	Endogenous Enzyme Activity	Peroxidase/AP Blocking Time	5-15 min incubation
	Non-Specific Protein Binding	Protein Block (Serum/BSA) Concentration	2-5% serum or 1-3% BSA
	Antibody Concentration	Primary/Secondary Antibody Titration	0.5-10 µg/mL (optimize per lot)
	Over-fixation	Antigen Retrieval pH & Time	Citrate (pH 6.0) or EDTA/TRIS (pH 9.0), 20-40 min
Weak/No Signal	Antigen Loss	Fixation Duration (Neutral Buffered Formalin)	18-24 hours (room temp)
	Inadequate Retrieval	Retrieval Method & pH	Validate enzymatic vs. heat-induced (HIER)
	Low Antibody Affinity	Antibody Incubation Time/Temp	1 hour (RT) to O/N (4°C)
	Insufficient Detection	Chromogen Incubation Time	1-10 minutes (visualize under microscope)
Non-Specific Binding	Cross-Reactivity	Antibody Host Species vs. Tissue Species	Use species-adsorbed secondary antibodies
	Ionic Interactions	Wash Buffer Stringency (Tween-20 Concentration)	0.025 - 0.1% Tween-20 in PBS/TBS
	Tissue Charge	Post-Fixation Acetylation (for ISH/IHC combos)	Treat with 0.1M Triethanolamine, 0.25% Acetic Anhydride

Detailed Experimental Protocols

Protocol 1: Systematic Titration of Primary Antibody

Purpose: To determine the optimal signal-to-noise ratio for a specific primary antibody-lot combination.

• Section Preparation: Cut 5 µm formalin-fixed, paraffin-embedded (FFPE) tissue sections (known positive control). Bake 30 min at 60°C.
• Deparaffinization & Rehydration: Perform through xylene and graded ethanol series (100%, 95%, 70%) to water.
• Antigen Retrieval: Use validated HIER method (e.g., citrate pH 6.0, 97°C for 20 min). Cool for 30 min.
• Peroxidase Block: Incubate with 3% H₂O₂ in methanol for 10 min. Rinse.
• Protein Block: Apply 2.5% normal serum (from secondary host species) for 20 min. Do not rinse.
• Primary Antibody Titration: Apply primary antibody at five concentrations (e.g., 0.5, 1, 2, 5, 10 µg/mL) to serial sections. Incubate 1 hour at room temperature.
• Detection: Use validated polymer-based detection system per manufacturer's instructions. Incubate with chromogen (DAB) for precisely 5 minutes.
• Counterstain & Mount: Use hematoxylin, dehydrate, clear, and mount.
• Analysis: Score intensity and background on a 0-3+ scale. Select concentration yielding highest specific signal with minimal background.

Protocol 2: Antigen Retrieval Optimization for Weak Signal

Purpose: To recover masked epitopes due to over-fixation.

• Section Preparation: Prepare serial FFPE sections as in Protocol 1, steps 1-2.
• Retrieval Matrix Setup: Test four conditions in a matrix:
  • A. Enzymatic: Proteinase K (10 µg/mL in PBS) for 5 min at 37°C.
  • B. HIER - Low pH: Citrate buffer (10 mM, pH 6.0), 97°C for 20 min.
  • C. HIER - High pH: EDTA buffer (1 mM, pH 8.0) or Tris-EDTA (10mM/1mM, pH 9.0), 97°C for 20 min.
  • D. Combined: Enzymatic pre-treatment (5 min), followed by HIER (pH 9.0, 10 min).
• Cooling: Cool all slides at room temperature for 30 min after retrieval.
• Standardized Staining: Proceed with consistent blocking, primary antibody (at mid-range concentration from Protocol 1), detection, and mounting.
• Evaluation: Compare signal intensity and cellular localization across conditions.

Visualizations

Diagram Title: IHC Staining Issue Diagnosis Flowchart

Diagram Title: Standard IHC Protocol with Critical Control Points

The Scientist's Toolkit: Key Research Reagent Solutions

Table 2: Essential Reagents for IHC Troubleshooting

Reagent / Material	Function in Troubleshooting	Key Consideration for CLIA/FDA Context
Validated Primary Antibody (IVD)	Specific target binding.	Must be part of an FDA-approved/cleared assay or undergo rigorous LDT verification.
Polymer-Based Detection System	Amplifies signal with minimal non-specific binding.	Use consistent, lot-controlled systems. Polymer systems reduce background vs. avidin-biotin.
pH-specific Antigen Retrieval Buffers	Unmasks epitopes altered by fixation.	Optimal pH is antigen-dependent; must be standardized and validated.
Automated Staining Platform	Provides reagent delivery consistency.	Critical for reproducibility. Protocol steps must be locked and performance qualified.
Multitissue Control Microarray	Contains known positive/negative tissues.	Run with every batch to monitor assay sensitivity, specificity, and staining uniformity.
Chromogen (e.g., DAB)	Produces insoluble colored precipitate at target site.	Must be prepared fresh or use stabilized formulation to prevent weak signal artifacts.
Specific Blocking Sera	Reduces non-specific Fc receptor & protein binding.	Must match the host species of the secondary antibody.
Stringent Wash Buffers (PBS/TBS with Tween)	Removes unbound reagent, reduces ionic binding.	Correct ionic strength and detergent concentration are crucial for signal-to-noise.

Optimization Strategies for Challenging Biomarkers and Low-Expressing Targets

Application Notes and Protocols

Within the framework of IHC assay verification for FDA-approved tests in a CLIA laboratory research setting, the detection of challenging biomarkers—including phosphorylated epitopes, labile proteins, and low-copy-number targets—demands rigorous protocol optimization. These strategies are critical for ensuring analytical specificity, sensitivity, and reproducibility, which underpin the validity of companion diagnostic development and therapeutic response monitoring.

1. Pre-Analytical Phase Optimization Pre-analytical variables are the predominant source of variability for low-expressing targets.

Protocol 1.1: Standardized Tissue Collection and Fixation for Phospho-Epitopes

• Objective: Preserve labile phosphorylation signals.
• Materials: Cold phosphate-buffered saline (PBS), neutral buffered formalin (NBF, 10%), timer, cold ischemic control device (optional).
• Methodology:
  • Immediately upon resection, place tissue in cold PBS (4°C) for no more than 2 minutes to rinse blood.
  • Slice tissue into ≤ 4 mm thick sections.
  • Submerge in >10 volumes of 10% NBF within 1 hour of collection.
  • Fix for 18-24 hours at room temperature with gentle agitation.
  • Process and paraffin-embed using standard protocols.
• Critical Step: Document and minimize cold ischemic time (CIT). For phospho-targets, CIT must be consistently controlled (<60 minutes).

Protocol 1.2: Antigen Retrieval Optimization Matrix

• Objective: Determine the optimal epitope retrieval method for a novel low-expression target.
• Materials: Serial tissue sections, heat-induced epitope retrieval (HIER) buffer (pH 6.0 citrate, pH 9.0 Tris-EDTA), pressure cooker or decloaking chamber, protease enzyme solution.
• Methodology:
  • Deparaffinize and hydrate sections.
  • Subject sections to different retrieval conditions in parallel:
    • Condition A: Citrate buffer (pH 6.0), 97°C, 20 min.
    • Condition B: Tris-EDTA buffer (pH 9.0), 97°C, 20 min.
    • Condition C: Citrate buffer (pH 6.0), 97°C, 40 min (prolonged).
    • Condition D: Protease digestion, 37°C, 8 min (for specific membrane proteins).
  • Proceed with standardized IHC protocol.
  • Compare signal-to-noise ratio and morphological preservation.

Table 1: Quantitative Impact of Pre-Analytical Variables on IHC Signal Intensity (H-Score)

Target Class	Optimal Fixation Time	CIT >60 min Impact	HIER pH 6.0 vs. 9.0 Result	Key Mitigation Strategy
Phospho-ERK1/2	18-24 hrs	Signal loss >70%	pH 9.0 superior (+40% signal)	Rapid fixation, pH 9 retrieval
PD-L1 (Clone 22C3)	18-48 hrs	Minimal impact	pH 6.0 standard	Standardize fixation window
Nuclear Hormone Receptor	24-72 hrs	Moderate impact (20-30%)	pH 6.0 superior	Controlled fixation duration
Low-copy Cell Surface Antigen	24 hrs	High impact on localization	Protease retrieval optimal	Enzyme-assisted retrieval

2. Analytical Phase: Signal Amplification and Background Reduction

Protocol 2.1: Tyramide Signal Amplification (TSA) for Low-Abundance Targets

• Objective: Amplify weak IHC signals while maintaining specificity.
• Materials: Primary antibody, HRP-conjugated secondary antibody, tyramide-conjugated fluorophore or hapten (e.g., FITC-Tyramide), hydrogen peroxide, amplification buffer.
• Methodology:
  • Perform standard IHC steps through primary and HRP-secondary antibody incubation.
  • Prepare tyramide working solution per manufacturer's instructions.
  • Incubate slides with tyramide solution for 2-10 minutes. Optimize time to prevent high background.
  • Wash thoroughly. For fluorescent detection, proceed to counterstain and mount. For chromogenic detection, incubate with an enzyme-conjugated label (e.g., anti-FITC-HRP) followed by chromogen.
• Note: Requires careful titration of primary antibody and tyramide incubation time. Validate with positive/negative controls.

Protocol 2.2: Multiplex IHC with Sequential Deactivation

• Objective: Detect multiple low-expressing targets on a single slide.
• Materials: Primary antibodies from different host species, HRP- and AP-conjugated secondaries, compatible chromogens (DAB, Fast Red, etc.), stripping or denaturing buffer (e.g., glycine-HCl pH 2.0, or heat-based methods).
• Methodology:
  • Perform IHC for Target 1 with HRP/DAB. DAB is recommended first for its permanence.
  • Apply a denaturing buffer (e.g., 0.1M Glycine-HCl, pH 2.0, 10 min) or heat sections in retrieval buffer to inactivate antibodies.
  • Validate deactivation by applying secondary antibody and chromogen; no signal should develop.
  • Proceed with IHC for Target 2 using a different antibody-host pair and chromogen (e.g., AP/Fast Red).
  • Repeat deactivation and staining cycles as needed.

Table 2: Comparison of Signal Amplification Techniques

Technique	Approximate Signal Gain	Risk of Background	Best Suited For	Compatibility with FDA-Cleared Platforms
Standard Polymer Detection	1x (Baseline)	Low	Moderate to high abundance targets	High (e.g., BenchMark, Bond, Autostainer)
Tyramide Signal Amplification	10-100x	Medium-High	Low-copy targets, RNA in situ hybridization	Medium (Requires optimization)
Polymer-Amplified, Multi-step	5-10x	Low-Medium	Routine low-expression markers	High
Nanoparticle-based Detection	20-50x	Low	Multiplex assays, in-situ proteomics	Emerging

The Scientist's Toolkit: Key Research Reagent Solutions

Item	Function in Optimizing Challenging Targets
Validated Phospho-Specific Antibodies	Ensure specificity for transient, modification-dependent epitopes; reduce cross-reactivity.
Controlled Ischemia Time Tracking System	Document pre-fixation delay; critical for labile biomarker reproducibility.
Multi-pH Epitope Retrieval Buffer Kit	Enable systematic optimization of unmasking conditions for novel antibodies.
High-Sensitivity Polymer Detection Systems	Provide superior signal-to-noise over traditional avidin-biotin (ABC) methods.
Tyramide-Based Amplification Kits	Exponentially amplify weak signals for ultra-low expressing targets.
Multiplex IHC Deactivation Buffer	Allows sequential staining without antibody cross-talk for co-expression analysis.
Digital Image Analysis Software	Objectively quantify low-level, heterogeneous staining (H-score, % positive cells).
Cell Line Microarrays (CLMA)	Contain engineered cells with known antigen expression levels for assay titration.

3. Validation and Verification in CLIA Context Protocol optimization must culminate in a verification study matching the CLIA lab's specific FDA-approved test's validation parameters.

Protocol 3.1: Limit of Detection (LoD) Determination for Low-Expressing Target

• Objective: Establish the minimum amount of analyte detectable by the optimized assay.
• Materials: Cell line microarray with a gradient of known antigen expression, or patient samples with low-positive expression.
• Methodology:
  • Stain the LoD sample series using the optimized protocol.
  • Have at least three board-certified pathologists score slides in a blinded manner.
  • The LoD is the lowest expression level where all reviewers consistently identify the target with ≥95% inter-observer concordance.
  • Compare the LoD to the clinical decision point for the associated therapy.

Title: Optimization Workflow for Low-Expression IHC

Title: PI3K-AKT-mTOR Pathway for Phospho-Targets

Managing Lot-to-Lot Reagent Variability and Antibody/Kit Changes

Application Notes: Framework for IHC Assay Verification in a CLIA Lab Context

For laboratories performing FDA-approved immunohistochemistry (IHC) tests under CLIA regulations, managing reagent variability is not merely a quality improvement goal—it is a stringent regulatory requirement. The verification of an IHC assay must ensure that changes in reagent lots or complete antibody/kit replacements do not alter the test's clinical performance characteristics. This process is integral to maintaining the validity of laboratory-developed test procedures (LDTs) and established companion diagnostics.

The core challenge lies in demonstrating analytical equivalence. A new reagent lot or a different clone must produce staining results that are analytically comparable to the established method in terms of sensitivity, specificity, and dynamic range. The following framework outlines a systematic, data-driven approach.

Table 1: Core Assay Performance Metrics for Reagent Comparison

Performance Metric	Target Specification	Method of Assessment	Acceptance Criteria for New Lot/Kit
Staining Intensity (Positive)	Consistent with established run	Digital image analysis (DIA) or semi-quantitative (0-3+) score	≤ 0.5 mean score difference; CV < 15% for DIA H-Score
Staining Intensity (Negative)	No non-specific staining	Microscopic evaluation	No increase in background (score of 0)
Positive Cell Percentage	Within expected range for control tissues	Manual count or DIA	≤ 10% absolute difference
Signal-to-Noise Ratio	Maintain or improve	DIA of target vs. background	No statistically significant decrease (p > 0.05)
Limit of Detection (LOD)	Detect antigen at established low expression	Titration on low-expressing control	LOD concentration within ±1 dilution of reference
Inter-Observer Agreement (if scored manually)	High concordance	Cohen's Kappa or ICC	Kappa ≥ 0.80; ICC ≥ 0.90

Table 2: Experimental Design for Parallel Testing

Tissue Microarray (TMA) Cohort	Number of Cores	Purpose in Verification
Strong Positive Expression	5-10	Assess sensitivity and intensity at high levels
Weak Positive Expression	5-10	Assess assay sensitivity and LOD
Negative Tissues	5-10	Assess specificity and background
Challenging Tissues (e.g., high background)	3-5	Stress-test for specificity
Total Cores	18-35	Provides statistical power for comparison

Detailed Experimental Protocols

Protocol 1: Verification of a New Antibody Lot for an FDA-Cleared IHC Assay

Objective: To verify that a new lot of the primary antibody yields analytically equivalent staining compared to the currently validated lot.

Materials:

• Validated IHC assay kit (excluding the primary antibody lot under test).
• Reference (current) antibody lot and new (incoming) antibody lot.
• Formalin-fixed, paraffin-embedded (FFPE) Tissue Microarray (TMA) as described in Table 2.
• Appropriate positive and negative control slides.

Methodology:

• Slide Preparation: Cut consecutive TMA sections at the same nominal thickness (e.g., 4 µm). Assign slides to be stained in the same run with the reference or new antibody lot.
• Batch Staining: Perform the IHC staining procedure identically and simultaneously for both antibody sets using the same automated stainer, incubation times, and detection kit. The only variable should be the antibody lot.
• Blinded Evaluation: Label slides with a blinded code. Have at least two qualified pathologists/technologists score each core for intensity (0-3+) and percentage of positive cells.
• Digital Image Analysis (Optional but recommended): Scan slides and use DIA software to quantify staining intensity (e.g., H-Score, Optical Density) in pre-defined regions.
• Data Analysis: Compare scores and quantitative data using statistical tests (e.g., paired t-test, Wilcoxon signed-rank test, Lin's concordance correlation coefficient). Assess if differences fall within pre-defined acceptance criteria (Table 1).

Protocol 2: Verification of a Complete Antibody or Kit Change (Clone or Vendor)

Objective: To establish analytical equivalence when implementing a new antibody clone or a complete detection kit from a different vendor.

Materials:

• Fully validated current IHC method (Antibody Clone A, Detection Kit X).
• New proposed IHC method (Antibody Clone B, Detection Kit Y).
• FFPE TMA and controls (as in Protocol 1).
• Optional: Cell line pellets with known antigen expression levels.

Methodology:

• Optimization Phase: If the new antibody/clone is not pre-optimized for FFPE IHC, perform a chessboard titration against antigen retrieval conditions (pH 6, pH 9) and antibody dilution to establish the optimal protocol that provides the best signal-to-noise ratio.
• Parallel Staining: Stain consecutive TMA sections with the established ("old") and new protocols in their respective optimized conditions. Include the full range of control tissues.
• Comprehensive Assessment: Evaluate slides as in Protocol 1. Crucially, also perform a clinical correlation if possible: For a defined set of patient cases (e.g., 20-30), compare the binary result (Positive/Negative) or semi-quantitative category (e.g., 0, 1+, 2+, 3+) between the old and new methods.
• Statistical Equivalence Testing: Use more robust statistical measures like Passing-Bablok regression and Bland-Altman plots to assess agreement. The primary goal is to demonstrate that any bias is not clinically significant.

Diagrams

IHC Reagent Verification Workflow

Reagent Impact on IHC Assay Parameters

The Scientist's Toolkit: Essential Research Reagent Solutions

Table 3: Key Materials for Managing IHC Reagent Variability

Item	Function in Verification Protocol
FFPE Tissue Microarray (TMA)	Contains multiplexed tissue controls for parallel testing of staining performance across diverse biological material.
Cell Line Microarray (CMA)	Comprised of cell lines with known, quantified antigen expression levels, providing a reproducible standard for quantitative comparison.
Digital Slide Scanner & DIA Software	Enables objective, quantitative measurement of staining intensity (H-Score, Optical Density), area, and cellular localization.
Reference Standard Antibody	A preserved aliquot of the previously validated antibody lot, serving as the gold standard for all comparative testing.
Automated IHC Stainer	Eliminates manual procedural variability, ensuring the reagent itself is the only tested variable during parallel runs.
Stable Antigen Retrieval Buffer	A critical reagent; using a single, large-volume lot for verification studies removes retrieval variability from the comparison.
CLIA-Quality Control Charts	Statistical process control tools (e.g., Levey-Jennings charts) to track staining intensity of control tissues over time across reagent changes.
Bonded, Pre-Treated Slides	Ensures consistent tissue adhesion across all test slides, preventing technical artifacts from influencing staining assessment.

Quality Control Failure Investigations and Corrective/Preventive Action (CAPA)

In the development and verification of FDA-approved IHC assays within a CLIA laboratory research setting, robust Quality Control (QC) systems are paramount. A failure investigation with subsequent Corrective and Preventive Action (CAPA) is a systematic process required to address non-conformances, prevent recurrence, and ensure the reliability of diagnostic data. This process is governed by 21 CFR Part 820 (QSR), CLIA regulations (42 CFR Part 493), and guidance from the FDA and CAP/CLSI.

The CAPA Process: A Structured Workflow

CAPA Process Workflow for IHC Assay QC Failures

Common IHC Assay QC Failures & Root Causes

The table below categorizes common QC failures encountered during IHC assay verification for FDA-approved tests.

Failure Category	Specific Example	Potential Root Cause (Investigation Area)	Frequency in IHC Verification* (%)
Staining Intensity	Weak or absent positive control staining.	Primary antibody degradation, improper epitope retrieval, depleted detection reagents.	35-40%
Background/Noise	High non-specific background staining.	Over-fixation, antibody concentration too high, inadequate blocking.	25-30%
Morphology	Poor tissue morphology or detachment.	Sectioning artifact, over-digestion during retrieval, slide coating issue.	15-20%
Reproducibility	Inter-assay or inter-lot variability.	Instrument calibration drift, reagent lot change, manual step inconsistency.	10-15%
Automation	Probe clogging or inconsistent reagent dispensing.	Instrument maintenance failure, bubble in fluidic line, software error.	5-10%

Estimated frequency based on survey of CLIA lab deviation logs (2020-2023).

Detailed Experimental Protocols for Failure Investigation

Protocol 4.1: Systematic Root Cause Analysis for Failed Staining

Objective: To determine the root cause of aberrant IHC staining (e.g., weak signal, high background). Materials: See "Scientist's Toolkit" (Section 7). Method:

• Re-examine Pre-Analytic Variables: Review specimen fixation logs (duration, type). Re-cut tissue from the same block and a control block.
• Reagent Verification:
  • Prepare fresh batches of key buffers (e.g., retrieval buffer, wash buffer).
  • Test a new aliquot of primary antibody from a different lot, if available.
  • Perform a serial dilution of the primary antibody to check for optimal concentration.
• Instrument & Process Check:
  • Run the staining protocol on a known validated control slide.
  • If using an autostainer, verify reagent dispensing volumes and probe alignment.
  • Manually perform key steps (e.g., retrieval, detection) on the failed slide alongside a control slide to isolate the faulty step.
• Controlled Experiment: Design a matrix experiment varying one key parameter at a time (e.g., retrieval time, antibody incubation time) to reproduce the failure.

Protocol 4.2: Verification of Corrective Action Effectiveness

Objective: To validate that implemented corrective actions resolve the issue and do not adversely affect assay performance. Method:

• Define Success Criteria: Establish pre-defined acceptance criteria (e.g., staining intensity score ≥ 3, background score ≤ 1, positive control cell count ≥ X).
• Execute Verification Runs: Perform a minimum of three (3) independent assay runs using the corrected process/materials. Include the following samples in each run:
  • The original failed specimen (if available).
  • Strong positive, weak positive, and negative tissue controls.
  • A known challenging specimen.
• Data Collection & Analysis:
  • Score slides blindly by at least two qualified pathologists/scientists.
  • Record quantitative data (e.g., H-score, percentage of positive cells) using digital image analysis if validated.
  • Compare results to historical data and pre-defined criteria.
• Statistical Analysis: Use appropriate tests (e.g., t-test, ANOVA) to confirm no statistically significant negative impact and that performance is within established bounds.

CAPA Documentation & Tracking Logic

CAPA Documentation Relationships

Tracking CAPA effectiveness is critical for continuous improvement. Below is a summary of key performance indicators.

CAPA Metric	Calculation Formula	Industry Benchmark (CLIA Labs)	Target for IHC Assay Verification
CAPA On-Time Closure	(CAPAs closed on or before due date / Total CAPAs closed) x 100	70-80%	>85%
Recurrence Rate	(Number of recurring issues / Total CAPAs closed) x 100	<5%	<2%
Average Cycle Time	Sum (Closure Date - Initiation Date) / Total CAPAs	60-90 days	<60 days
Effectiveness Check Pass Rate	(CAPAs passing 1st effectiveness check / Total CAPAs implemented) x 100	90%	>95%

The Scientist's Toolkit: Key Research Reagent Solutions

Item	Function in IHC Failure Investigation	Example Product/Catalog
Tissue Microarray (TMA)	Contains multiple control tissues on one slide for efficient parallel testing of staining conditions.	Pantomics FDA-approved TMA blocks; US Biomax Multi-tumor TMAs.
Ready-to-Use Antibody Diluent	Provides consistent pH and protein background reduction; used to test if in-house diluent is the failure source.	Agilent Antibody Diluent; Dako REAL Antibody Diluent.
Antibody Validated Control Slides	Pre-stained or ready-to-stain slides with known reactivity; critical for verifying antibody performance.	Cell Marque Control Slides; BOND Ready-to-Use Control Slides.
Automated Stainer Cleaning Kit	Specific solutions for decontamination and removal of precipitates from instrument fluidic paths.	Ventana System Cleaner; Leica Bond Wash Solution.
Digital Pathology Image Analysis Software	Quantifies staining intensity (H-score, % positivity) objectively for effectiveness check data.	HALO (Indica Labs); Visiopharm Integrator System; QuPath.
Calibrated Micro-pipettes & Balances	Essential for precise preparation of new reagent batches during troubleshooting.	Eppendorf Research plus; Mettler Toledo analytical balances.

Benchmarking and Validation: Demonstrating Equivalence and Superiority in IHC Testing

Within the framework of CLIA laboratory research, verification of immunohistochemistry (IHC) assays is a critical step to ensure analytical validity. Laboratories often develop laboratory-developed tests (LDTs) or modify existing FDA-approved/cleared companion diagnostics (CDx) to meet specific research needs. This application note details the design of a rigorous comparative study to evaluate the performance of an FDA-approved IHC test against a modified or novel laboratory method. The goal is to generate evidence that the laboratory method performs equivalently or superiorly for specific research endpoints, such as biomarker discovery or patient stratification in clinical trials, while adhering to CLIA verification principles.

Core Study Design & Key Statistical Considerations

A robust comparative study requires a clear definition of endpoints, appropriate sample selection, and statistically powered analysis.

Table 1: Key Comparative Study Design Parameters

Design Parameter	Description	Example/Consideration
Primary Endpoint	The main measurable outcome for comparison.	Concordance rate (Positive/Negative Percent Agreement), Inter-rater reliability (Cohen’s Kappa).
Secondary Endpoints	Supplemental performance metrics.	Intensity scoring correlation, cellular localization accuracy, staining uniformity.
Sample Size (n)	Number of unique patient samples required.	Minimum of 60 samples, powered to detect a ≥10% difference with 80% power (α=0.05).
Sample Cohort	Selection of tissue specimens.	Include a spectrum of expression (negative, weak, moderate, strong), relevant disease states, and archival/FFPE samples.
Reference Standard	The benchmark for comparison.	FDA-approved test result, orthogonal method (e.g., FISH, NGS), or consensus review by multiple pathologists.
Statistical Tests	Analysis methods for endpoint evaluation.	McNemar’s test for discordant pairs, Pearson/Spearman correlation, Fleiss’ Kappa for multiple raters.

Table 2: Example Data Output Summary Table

Metric	FDA-Approved Test (Result)	Laboratory Method (Result)	Statistical Analysis (p-value)	Interpretation
Positive Percent Agreement (PPA)	45/50 Positives (Ref.)	43/50 Positives	0.687 (McNemar’s)	No significant difference in detection of positives.
Negative Percent Agreement (NPA)	48/50 Negatives (Ref.)	49/50 Negatives	1.000 (McNemar’s)	No significant difference in detection of negatives.
Overall Concordance	100 Samples (Ref.)	92/100 Samples	95% CI: 88.5% - 98.0%	Meets pre-set acceptance criterion (e.g., >85%).
Cohen’s Kappa (κ)	---	κ = 0.89	CI: 0.82 - 0.96	Excellent agreement beyond chance.
Scoring Correlation (Spearman’s ρ)	Average Score: 2.1	Average Score: 2.3	ρ = 0.91, p<0.001	Strong monotonic correlation in semi-quantitative scores.

Detailed Experimental Protocols

Protocol 1: Sample Selection and Pre-Analytical Processing

Objective: To assemble a representative, unbiased cohort of samples for blinded evaluation.

• Cohort Definition: Identify archival FFPE tissue blocks from a biorepository. Target n=100 blocks encompassing the intended sample spectrum (see Table 1).
• Power Analysis: Justify sample size using statistical software (e.g., PASS, G*Power) based on the primary endpoint.
• Sectioning: Cut serial sections of 4-5 µm thickness from each block.
• Slide Labeling: De-identify and label slides with a unique study ID. Create two identical sets for parallel staining.
• Randomization: Use a random number generator to assign slide order for staining and evaluation to minimize batch effects.

Protocol 2: Parallel Staining with FDA and Laboratory Methods

Objective: To perform IHC staining under optimized conditions for each assay.

• FDA-Approved Test Protocol:
  • Follow the manufacturer's Instructions for Use (IFU) exactly for the FDA-approved assay (e.g., VENTANA PD-L1 (SP142) Assay).
  • Use the specified automated staining platform (e.g., VENTANA BenchMark ULTRA), antibody clone, dilution, and detection kit.
  • Include the recommended positive and negative controls on each run.
• Laboratory Method Protocol:
  • Antibody Optimization: If using a different clone or concentration, perform prior checkerboard titration on control tissues to establish optimal signal-to-noise ratio.
  • Staining Procedure: Perform IHC on the serial sections using the laboratory's standard validated protocol (e.g., Leica BOND RX platform with Epitope Retrieval Solution 2, primary antibody clone [e.g., 22C3] at 1:50 dilution for 30 minutes, and polymer-based detection).
  • Controls: Run the same control tissues as in the FDA method run.

Protocol 3: Blinded Pathologist Evaluation and Scoring

Objective: To obtain unbiased diagnostic reads from both assay result sets.

• Slide Distribution: Provide the stained slides to ≥3 board-certified pathologists trained in the specific biomarker.
• Blinding: Ensure evaluators are blinded to the assay type, patient identity, and the other method's result.
• Scoring Criteria: Provide a scoring sheet with the FDA test's official scoring rubric (e.g., Tumor Proportion Score for PD-L1) and the laboratory method's rubric. Ensure definitions (e.g., "positive cell") are unambiguous.
• Independent Review: Each pathologist scores all slides from both methods in a randomized order across multiple sessions to avoid fatigue bias.
• Data Collection: Use a structured electronic data capture form to record scores (e.g., 0, 1+, 2+, 3+ or positive/negative).

Visualization of Experimental Workflow

The Scientist's Toolkit: Key Research Reagent Solutions

Table 3: Essential Materials for IHC Comparative Studies

Item	Function & Importance
FFPE Tissue Microarray (TMA)	Contains multiple patient samples on one slide, enabling high-throughput, simultaneous staining of the cohort under identical conditions, reducing run-to-run variability.
Automated IHC Staining Platform	(e.g., Ventana BenchMark, Leica BOND, Agilent/Dako Omnis). Ensures precise, reproducible dispensing of reagents, standardized epitope retrieval, and minimal manual handling error.
Isotype Control Antibodies	Matched to the host species and immunoglobulin class of the primary antibody. Critical for distinguishing specific staining from non-specific background.
Multistep Polymer-Based Detection System	(e.g., HRP polymer with DAB chromogen). Amplifies the signal from low-abundance targets and increases assay sensitivity, crucial for comparing methods.
Commercial Antigen Retrieval Buffers	(e.g., Citrate pH 6.0, EDTA/TRIS pH 9.0). Standardized buffers are essential for consistent epitope unmasking, a major variable in IHC.
Digital Slide Scanner & Image Analysis Software	Enables whole-slide imaging for archival, remote pathologist review, and quantitative analysis of staining intensity and percentage (H-score, Q-score).
Reference Standard Control Cell Lines	(e.g., CST cell line slides). Provides consistent, defined positive and negative controls with known biomarker expression levels for daily run validation.

In the verification of FDA-approved immunohistochemistry (IHC) assays for CLIA laboratory research, demonstrating analytical agreement is paramount. This process ensures that the laboratory's implementation of the test performs equivalently to the manufacturer's validated method and meets regulatory and clinical requirements. Statistical methods for agreement analysis, including concordance, sensitivity, specificity, and the Kappa statistic, provide the framework for quantitatively assessing this performance, particularly when comparing a new method to a reference standard or another validated method.

Key Statistical Metrics: Definitions and Application

These metrics are typically calculated from a 2x2 contingency table comparing a new IHC assay's results against a reference method (e.g., another FDA-approved assay, PCR, or expert pathology consensus).

Table 1: Core Statistical Metrics for IHC Assay Agreement Analysis

Metric	Formula	Interpretation in IHC Context
Overall Percent Agreement (Concordance)	(a+d) / (a+b+c+d)	The proportion of all samples where the new and reference methods agree. Provides an initial, but potentially misleading, view of performance.
Positive Percent Agreement (Sensitivity)	a / (a+c)	The ability of the new assay to correctly detect the biomarker when it is truly present (as per reference). Critical for minimizing false negatives.
Negative Percent Agreement (Specificity)	d / (b+d)	The ability of the new assay to correctly identify the absence of the biomarker when it is truly absent. Critical for minimizing false positives.
Prevalence	(a+c) / (a+b+c+d)	The proportion of positive samples in the studied population. Heavily influences PPA/NPA.
Cohen's Kappa (κ)	(Pₒ - Pₑ) / (1 - Pₑ)	Measures agreement beyond that expected by chance alone. κ ≤ 0 indicates no agreement, 0.01-0.20 slight, 0.21-0.40 fair, 0.41-0.60 moderate, 0.61-0.80 substantial, 0.81-1.00 almost perfect agreement.

Where, in a 2x2 table: a=True Positives, b=False Positives, c=False Negatives, d=True Negatives; Pₒ=Observed agreement, Pₑ=Expected agreement by chance.

Experimental Protocol: Agreement Study for an IHC PD-L1 Assay

This protocol outlines the verification of a laboratory-developed IHC PD-L1 assay against an FDA-approved companion diagnostic.

Objective: To verify the analytical performance of the in-house PD-L1 IHC assay (Lab Method) by comparing it to the FDA-approved PD-L1 IHC assay (Reference Method) using a cohort of archival non-small cell lung carcinoma (NSCLC) specimens.

Materials:

• Test Samples: 100 retrospectively selected, de-identified formalin-fixed, paraffin-embedded (FFPE) NSCLC tissue blocks with varying PD-L1 expression levels.
• Reference Method: FDA-approved PD-L1 IHC assay kit, automated staining platform, and associated scoring guidelines.
• Lab Method: Laboratory's IHC protocol for PD-L1 (primary antibody, detection system, staining platform).
• Scanners & Software: Whole slide scanners and image analysis software (optional, for digital pathology scoring).

Procedure:

• Sample Selection & Sectioning: Cut serial sections (4 µm) from each of the 100 FFPE blocks. Assign slides for the Reference and Lab Methods.
• Staining: Perform IHC staining according to the manufacturer's protocol for the Reference Method and the laboratory's SOP for the Lab Method. Include appropriate controls in each run.
• Blinded Scoring: Two board-certified pathologists, blinded to the other method's result and patient identity, score each slide.
  • For PD-L1, score the Tumor Proportion Score (TPS) - the percentage of viable tumor cells showing partial or complete membrane staining.
  • Use the clinically relevant cut-off (e.g., TPS ≥ 1% and TPS ≥ 50%) to categorize samples as positive or negative.
• Adjudication: Resolve any scoring discrepancies between pathologists for a given slide by concurrent re-review to reach a consensus result.
• Data Analysis: For each clinical cut-off, create a 2x2 contingency table. Calculate Overall Agreement, PPA (Sensitivity), NPA (Specificity), and Cohen's Kappa with 95% confidence intervals.

Table 2: Example Results for PD-L1 Assay Verification (TPS ≥ 1% Cut-off)

Statistic	Result (95% CI)	Interpretation
Overall Agreement	94.0% (87.4% - 97.8%)	High raw concordance observed.
PPA (Sensitivity)	92.3% (81.5% - 97.9%)	The lab test correctly identifies 92.3% of true positive samples.
NPA (Specificity)	95.2% (86.7% - 99.0%)	The lab test correctly identifies 95.2% of true negative samples.
Cohen's Kappa (κ)	0.88 (0.78 - 0.97)	Indicates almost perfect agreement beyond chance.

Visualization of the Agreement Analysis Workflow

Title: IHC Assay Verification Workflow for Agreement Analysis

The Scientist's Toolkit: Essential Reagents & Materials

Table 3: Key Research Reagent Solutions for IHC Agreement Studies

Item	Function in Agreement Analysis
FFPE Tissue Microarray (TMA)	Contains multiple validated tissue cores on one slide, enabling efficient staining of positive/negative controls and test samples across both assays under identical conditions.
Reference Standard Antibody (FDA-approved clone)	The primary antibody from the predicate device. Serves as the benchmark for comparing the performance of the laboratory's chosen antibody.
Validated Detection System	A polymer-based HRP or AP detection kit known for low background and high specificity. Essential for ensuring signal is attributable to specific antibody binding.
Automated IHC Stainer	Provides standardized, reproducible staining conditions, minimizing inter-run variability—a critical factor for a reliable comparison.
Cell Line Controls (e.g., Transfected)	FFPE pellets of cell lines with known negative, low, and high expression of the target antigen. Used as run controls to monitor assay sensitivity and specificity.
Whole Slide Scanner & DIA Software	Enables digital pathology workflows: archival of results, remote blinded review, and quantitative image analysis for objective scoring (e.g., continuous TPS).

Establishing Clinical Concordance with Patient Outcomes and Existing Gold Standards

Clinical concordance analysis is a cornerstone of in vitro diagnostic (IVD) assay verification and validation, particularly for FDA-approved tests used within a CLIA laboratory environment. This process ensures that a new or modified immunohistochemistry (IHC) assay performs equivalently to an existing "gold standard" method and, critically, that its results correlate with established patient clinical outcomes. The objective is to demonstrate analytical and clinical validity, providing evidence that the test result reliably informs patient management decisions.

Foundational Concepts & Key Metrics

The verification of an IHC assay involves rigorous comparison against a predicate device or clinical endpoint. Key metrics are summarized in the table below.

Table 1: Key Metrics for Clinical Concordance Analysis

Metric	Formula/Definition	Interpretation & Target
Positive Percent Agreement (PPA)	(True Positives / (True Positives + False Negatives)) x 100	Sensitivity vs. comparator. Target typically ≥ 90%.
Negative Percent Agreement (NPA)	(True Negatives / (True Negatives + False Positives)) x 100	Specificity vs. comparator. Target typically ≥ 90%.
Overall Percent Agreement (OPA)	((TP + TN) / Total Cases) x 100	Gross measure of concordance. Target ≥ 95%.
Cohen's Kappa (κ)	(Observed Agreement - Expected Agreement) / (1 - Expected Agreement)	Chance-corrected agreement. κ > 0.80 indicates excellent agreement.
Confidence Interval (95% CI)	Statistical range for point estimates (e.g., PPA, NPA).	Must meet pre-specified lower bound (e.g., LCB > 85%).

Experimental Protocols

Protocol 3.1: Retrospective Clinical Concordance Study Using Archived Specimens

Objective: To establish the concordance between results from a new IHC assay and the existing FDA-approved gold standard assay using clinically annotated, archival patient tissue samples.

Materials:

• Archived, formalin-fixed, paraffin-embedded (FFPE) tissue blocks with linked clinical outcome data (e.g., progression-free survival, response to therapy).
• Consecutive cases meeting specific clinical criteria (e.g., specific cancer type, stage).
• FDA-approved predicate IHC assay and protocol.
• New IHC assay reagents and protocol.
• Positive and negative control tissues.
• Calibrated automated staining platform and microscopes.

Procedure:

• Case Selection & Powering: Perform a statistical power calculation to determine the required sample size (N) to demonstrate non-inferiority, targeting precision (width) for PPA/NPA 95% CIs. Include at least 50 positive and 50 negative cases based on the gold standard.
• Sectioning: Cut serial sections (4-5 µm) from each FFPE block and mount on charged slides.
• Blinded Staining: Label slides with a unique study ID. Stain one section per case using the predicate assay and a serial section using the new assay, following respective optimized protocols. Include batch controls.
• Blinded Evaluation: Two board-certified pathologists, blinded to the assay type and clinical outcome, independently score all slides. Use the clinically validated scoring algorithm (e.g., H-score, % positivity, binary positive/negative). Resolve discrepancies by consensus review.
• Data Analysis: Calculate PPA, NPA, OPA, and Cohen's κ with 95% CIs (see Table 1). Construct a 2x2 concordance table.

Protocol 3.2: Correlation of Assay Results with Clinical Outcome (Survival Analysis)

Objective: To validate that the biomarker status determined by the new IHC assay is predictive of a clinically relevant endpoint.

Materials:

• Cohort of archival specimens with extensive longitudinal clinical follow-up data.
• IHC assay results from Protocol 3.1.
• Statistical analysis software (e.g., R, SAS).

Procedure:

• Data Merge: Link de-identified IHC results (positive/negative, or continuous score) with patient outcome data (e.g., overall survival (OS), disease-specific survival).
• Stratification: Stratify patients into biomarker-positive and biomarker-negative groups based on the new assay's scoring cut-off.
• Kaplan-Meier Analysis: Generate Kaplan-Meier survival curves for each group.
• Statistical Testing: Perform a log-rank test to compare the survival distributions between the two groups. A p-value < 0.05 indicates a statistically significant difference.
• Hazard Ratio Calculation: Perform a univariate Cox proportional-hazards regression to calculate the hazard ratio (HR) and its 95% CI for the biomarker status. An HR > 1 indicates worse survival for the positive group.

Table 2: Example Survival Analysis Results (Hypothetical Data)

Biomarker Status (New Assay)	Median OS (Months)	95% CI for Median OS	Hazard Ratio (vs. Negative)	95% CI for HR	Log-rank p-value
Positive (n=60)	24.5	18.2 - 30.8	2.1	1.4 - 3.2	0.001
Negative (n=140)	45.0	38.5 - 51.5	1.0 (Reference)	--	--

Visualizations

IHC Concordance & Outcome Study Workflow

IHC Detection Principle & Signal Pathway

The Scientist's Toolkit: Key Research Reagent Solutions

Table 3: Essential Materials for IHC Concordance Studies

Item	Function & Rationale
FFPE Tissue Microarray (TMA)	Contains multiple patient samples on one slide, enabling high-throughput, simultaneous staining of all cases under identical conditions, reducing batch variation.
Reference Control Cell Lines	Commercially available FFPE pellets of cell lines with known, stable expression levels of the target (positive, negative, low/medium/high). Used for daily run validation and assay monitoring.
Validated Primary Antibody Clone	The critical reagent. Must be specific for the target epitope and validated for IHC on FFPE tissue. Clone and lot number must be documented and controlled.
Automated Staining Platform	Ensures standardized, reproducible application of reagents (antibodies, detection systems), minimizing technician-to-technician variability essential for concordance studies.
Chromogenic Detection System (e.g., HRP-DAB)	Generates a stable, visible precipitate at the antigen site. Must have high sensitivity and low background. The same system should be used for both predicate and new assays if possible.
Whole Slide Scanner & Image Analysis Software	Enables digital pathology workflows: slide archiving, blinded remote review by pathologists, and quantitative analysis of staining intensity and percentage (quantifying H-scores).
Statistical Analysis Software (e.g., R, SAS, MedCalc)	Required for calculating concordance metrics with confidence intervals, survival analyses, and generating evidence-quality reports for regulatory submissions.

Navigating the Transition from an LDT to an FDA-Approved Platform

Clinical Laboratory Improvement Amendments (CLIA) certified research labs increasingly face pressure to transition Laboratory Developed Tests (LDTs) to FDA-approved/cleared in vitro diagnostic (IVD) platforms. This shift, driven by demands for enhanced assay reproducibility, standardization for multi-center trials, and evolving regulatory expectations, requires a strategic verification and validation approach. For immunohistochemistry (IHC) assays used in drug development and companion diagnostic research, this process ensures analytical robustness comparable to clinical diagnostics.

Key Comparative Metrics: LDT vs. FDA-Approved IVD

Transitioning necessitates a direct comparison of performance characteristics. The following table summarizes typical verification data requirements.

Table 1: Core Comparative Analytical Performance Metrics for IHC Assays

Performance Parameter	Typical LDT Benchmark	FDA-Approved IVD Claim	Verification Acceptance Criteria
Analytical Sensitivity (Detection Limit)	Established via serial dilution of positive control tissue	Provided in package insert (e.g., cell line dilution series)	≥ 95% concordance with IVD claim at claimed limit
Analytical Specificity	In-house assessment of cross-reactivity	Listed in package insert (tested antigens/tissues)	No clinically significant cross-reactivity observed
Precision (Repeatability)	Intra-run % positive agreement (PPA) >90%	Intra-assay precision (e.g., CV of staining intensity score)	PPA ≥ 90% with IVD reproducibility data
Precision (Reproducibility)	Inter-day, inter-operator, inter-lot variation tracked	Inter-site reproducibility data included	Overall PPA ≥ 85% across all variables
Accuracy/Concordance	Comparison to orthogonal method (e.g., FISH, PCR)	Clinical sensitivity/specificity vs. predicate method	Overall percent agreement (OPA) with predicate ≥ 95%
Robustness	Defined protocol tolerances (e.g., antigen retrieval time ±10%)	Stated conditions for use (equipment, reagents)	Meets performance specs across stated conditions

Application Note: Protocol for a Side-by-Side Verification Study

This protocol outlines the critical steps for verifying an FDA-approved IHC assay against an established LDT for the same biomarker.

Title: Protocol for Verification of an FDA-Approved IHC Assay Against an Existing LDT. Objective: To establish performance equivalence between the FDA-approved IVD platform and the legacy LDT for use in CLIA-regulated research. Scope: Applicable to qualitative or semi-quantitative IHC assays.

Materials and Reagent Solutions

Table 2: Research Reagent Solutions Toolkit

Item	Function & Specification
FDA-Approved IVD Kit	Includes pre-optimized primary antibody, detection system, and controls. Provides standardized protocol.
Legacy LDT Reagents	In-house validated antibody clone, retrieval buffer, and detection system. Serves as the comparator.
Multi-Tissue Microarray (TMA)	Contains 30-60 cores with pre-defined expression levels (negative, weak, moderate, strong positive). Enables efficient high-volume testing.
Isotype Control Antibody	Matched to the host species and immunoglobulin class of the primary antibody. Controls for non-specific staining.
Cell Line Pellet Controls	Engineered or characterized cell lines with known antigen expression levels. Used for run-to-run precision monitoring.
Automated Staining Platform	FDA-approved platform specified for the IVD OR open platform with validated protocol. Ensures procedural consistency.
Digital Pathology Scanner	High-throughput scanner for creating whole slide images (WSI). Enables quantitative image analysis.
Image Analysis Software	FDA-cleared or validated algorithm for biomarker scoring (e.g., H-score, % positive cells). Reduces observer bias.

Experimental Workflow

Title: Verification Study Workflow for IHC Platform Transition

Detailed Methodology

Step 1: Cohort Selection. Assemble a retrospective cohort of 40-60 formalin-fixed, paraffin-embedded (FFPE) samples representing the full spectrum of antigen expression (0, 1+, 2+, 3+). Include 20% borderline cases. Construct a TMA in duplicate.

Step 2: Staining Protocol.

• FDA-IVD Arm: Follow the package insert exactly. Use the specified automated stainer, pre-diluted antibodies, and incubation times. Include on-slide kit controls.
• LDT Arm: Execute the legacy, validated protocol on the same TMA sections using the usual laboratory equipment.
• Run Design: Perform staining in three independent runs on different days, using different reagent lots and operators.

Step 3: Blinded Evaluation. De-identify all slides. Two board-certified pathologists, blinded to platform and sample identity, score each core using the IVD's defined scoring algorithm. Resolve discrepancies by consensus.

Step 4: Digital Analysis. Scan all slides at 20x magnification. Apply a validated digital image analysis algorithm to generate quantitative scores (H-score, % positivity) for objective comparison.

Step 5: Statistical Analysis. Calculate:

• Overall Percent Agreement (OPA): (Number of concordant scores / Total scores) * 100.
• Positive/Negative Percent Agreement (PPA/NPA): Compare against the LDT as the reference method.
• Cohen’s Kappa (κ): Assess inter-rater and inter-method agreement beyond chance. Target κ > 0.80.

Protocol: Assessing Clinical Concordance Using a Predicate Method

When transitioning a predictive biomarker assay (e.g., PD-L1), clinical concordance with a predicate method is critical.

Title: Protocol for Clinical Concordance Assessment with a Predicate Device. Experimental Workflow:

Title: Clinical Concordance Testing Workflow

Methodology:

• Obtain 100-200 archival FFPE samples linked to relevant clinical outcome data (e.g., response to therapy for a companion diagnostic).
• Stain all samples with the new FDA-approved IVD and the previously used predicate method (another FDA-approved test or the legacy LDT).
• Apply the specific, clinically validated cut-off for each assay to generate a binary (Positive/Negative) result.
• Construct a 2x2 contingency table. Calculate clinical sensitivity, specificity, and overall agreement. The primary endpoint is often a lower bound of the 95% confidence interval for OPA > 85%.

Data Analysis and Decision Points

Table 3: Example Verification Results Summary for PD-L1 IHC Assay (n=50 samples)

Sample Category	LDT Positive	LDT Negative	FDA-IVD Positive	FDA-IVD Negative	Agreement
Strong Positive (3+)	15	0	14	1	93.3%
Weak Positive (1+/2+)	20	0	18	2	90.0%
Negative	0	15	1	14	93.3%
Total	35	15	33	17	92.0% OPA
Statistical Metric	Value	95% CI
Overall Percent Agreement (OPA)	92.0%	81.2% - 97.0%
Positive Percent Agreement (PPA)	94.3%	81.4% - 98.9%
Negative Percent Agreement (NPA)	86.7%	62.1% - 96.3%
Cohen’s Kappa (κ)	0.83	0.68 - 0.97

Conclusion: Based on the data in Table 3, the FDA-approved IVD meets pre-defined acceptance criteria (OPA > 90%, κ > 0.80) for replacing the LDT in the research setting. The verification report must document all protocols, raw data, and discrepancies, forming the basis for standard operating procedure (SOP) updates within the CLIA lab.

Validation sufficiency for FDA-approved IHC assays in a CLIA research laboratory context requires a rigorous, documented approach aligned with CLIA ’88, CAP checklists, and FDA guidance. This document provides application notes and protocols for assembling evidence that satisfies accrediting body inspectors.

Foundational Regulatory Framework & Quantitative Benchmarks

Accrediting bodies expect validation data to meet established performance thresholds. The following table summarizes key quantitative benchmarks for an FDA-approved IHC assay deployed in a CLIA lab for research.

Table 1: Key Validation Performance Benchmarks for FDA-Approved IHC Assays

Performance Parameter	Accepted Benchmark (Typical Minimum)	Regulatory/ Guideline Source	Evidence Required
Analytical Sensitivity (Detection Limit)	Staining of cells/tissue with known low target expression.	CAP ANP.22950, FDA Premarket Guidance	Serial dilution studies with known positive low-expressing samples.
Analytical Specificity (Interference)	No significant non-specific staining or interference.	CLIA §493.1253(b)(3)	Testing of off-target tissues, endogenous enzymes, and interfering substances.
Precision (Repeatability & Reproducibility)	≥95% Concordance (for qualitative tests).	CAP Checklist ANP.22980	Intra-run, inter-run, inter-operator, inter-instrument, inter-day studies.
Accuracy/ Concordance	≥95% Overall Percent Agreement (OPA) with reference method/lab.	FDA Statistical Guidance (2019)	Method comparison study vs. original FDA-validation data or reference lab.
Reportable Range	Staining intensity and distribution interpretable across expected expression range.	CLIA §493.1253(b)(1)	Testing of samples with known negative, weak, moderate, and strong expression.
Reference Range/ Expected Results	Established for each tissue type and indication.	CAP Checklist ANP.22985	Documentation of expected staining patterns in normal, benign, and relevant pathological tissues.

Detailed Experimental Protocols for Validation Studies

Protocol 3.1: Precision (Reproducibility) Testing

Objective: To demonstrate staining consistency across variables in the testing process. Materials: 10-20 well-characterized FFPE tissue blocks (spanning negative, weak, moderate, strong expression). FDA-approved assay kit, controls, and calibrated instrumentation. Procedure:

• Design: Execute a nested study over 5 days.
• Day 1 (Inter-operator): Two qualified operators, using the same instrument and reagent lot, stain one full run of all samples independently.
• Days 2-5 (Inter-day, Inter-instrument, Inter-reagent lot): A single operator stains all samples on four consecutive days, incorporating a second, validated instrument (Day 3) and a second reagent lot (Day 5) as applicable.
• Evaluation: All slides are de-identified and scored independently by two pathologists/readers using the clinical reportable scale (e.g., 0, 1+, 2+, 3+). Scores are recorded.
• Analysis: Calculate positive percent agreement (PPA) and negative percent agreement (NPA) for each variable pair (e.g., Operator A vs. B). Overall concordance must meet the ≥95% benchmark.

Protocol 3.2: Method Comparison for Accuracy

Objective: To establish concordance with the FDA-approved test's expected performance. Materials: 30-50 retrospective clinical FFPE samples with known target status via the original FDA-approved test. Current FDA-approved assay components. Procedure:

• Sample Selection: Select a cohort that reflects the prevalence and expression spectrum of the intended use.
• Blinded Testing: Perform IHC staining on all samples in the local CLIA lab using the established protocol.
• Independent Review: Two blinded readers score the slides. Resolve discrepancies with a third reader.
• Statistical Analysis: Compare local results to the reference results. Generate a 2x2 contingency table. Calculate OPA, PPA, NPA, and Cohen's kappa coefficient. OPA and kappa should meet predefined thresholds (e.g., ≥95% OPA, kappa ≥0.85).

Protocol 3.3: Analytical Specificity (Interference) Check

Objective: To identify potential sources of false-positive or false-negative staining. Materials: Tissues with known cross-reactive antigens, samples with high endogenous biotin or peroxidase, and tissues with potential edge artifacts. Procedure:

• Cross-reactivity: Stain tissues known to express phylogenetically related or structurally similar proteins.
• Endogenous Enzymes: Include controls without primary antibody to check for adequate peroxidase/alkaline phosphatase blocking.
• Hook Effect: If applicable, stain a sample with extremely high antigen load at standard and diluted antibody concentrations.
• Documentation: Document any observed interference and the mitigation steps in place (e.g., additional blocking steps).

Visualization of Workflows and Relationships

Title: IHC Assay Validation Sufficiency Workflow

Title: From Regulations to Inspection Evidence

The Scientist's Toolkit: Key Research Reagent Solutions

Table 2: Essential Materials for IHC Validation Studies

Item	Function in Validation	Key Consideration for Inspection
Certified Reference FFPE Tissue Microarrays (TMAs)	Provide multiple tissues/controls on one slide for efficient, concurrent testing of precision and specificity.	Must be well-characterized (IHC, ISH, etc.). Certificate of Analysis (CoA) required.
Cell Line-derived Xenograft FFPE Blocks	Provide a renewable source of homogeneous tissue with known, stable target expression levels for sensitivity/dilution studies.	Documentation of cell line identity (STR profiling) and target expression verification is critical.
On-slide Control Tissues	Integrated positive and negative controls on each patient slide to monitor run-to-run performance.	Must be validated to represent appropriate staining thresholds.
Calibrated Automated Stainers	Ensure consistent application of reagents, incubation times, and temperatures for reproducibility studies.	Records of installation, operational, and performance qualifications (IQ/OQ/PQ) and routine PM required.
Digital Image Analysis & Pathologist Scoring Software	Provides quantitative, objective scoring (H-score, % positivity) and facilitates blinded review for accuracy studies.	Software validation (21 CFR Part 11 compliance if used for final reporting) must be documented.
Documented Reagent Lot Tracking System	Links every test result to specific reagent lots, a requirement for investigating any performance drift.	System must be auditable. Records should be retained per CLIA regulations (≥2 years).

Conclusion

Successful verification of an FDA-approved IHC assay within a CLIA laboratory is a multifaceted endeavor that hinges on a deep understanding of regulatory frameworks, meticulous methodological execution, proactive troubleshooting, and rigorous comparative validation. By systematically addressing each of these intents, labs can ensure their IHC testing delivers clinically reliable, reproducible, and regulatory-compliant results. As precision medicine evolves, with increasing reliance on biomarkers for therapy selection, the principles outlined here will become even more critical. Future directions include greater harmonization of guidelines between the FDA and CMS, the integration of artificial intelligence for objective interpretation, and the development of novel multiplexed IHC assays, all demanding that labs maintain robust, transparent, and scientifically sound verification practices to advance patient care and biomedical research.
